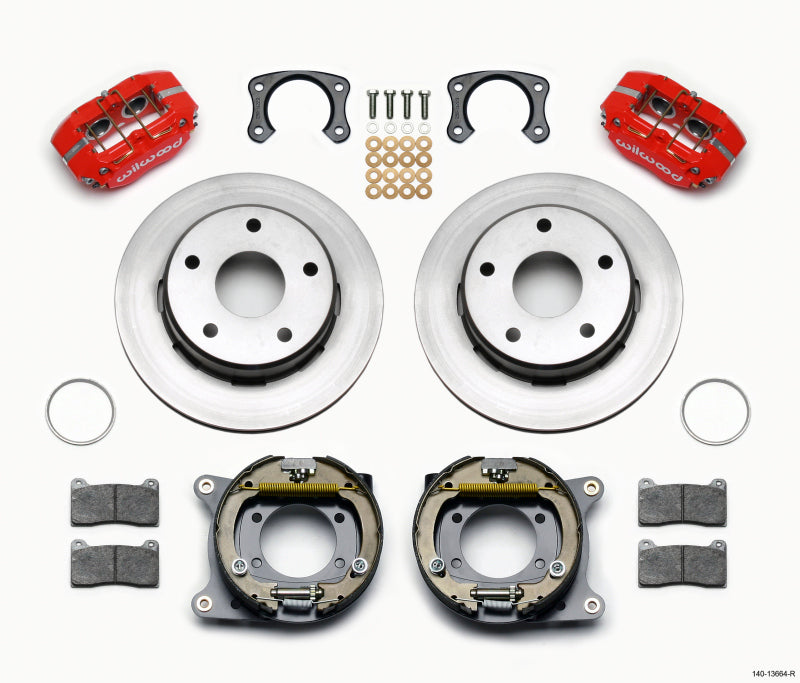

Wilwood DPL P/S Park Brake Kit,Red Big Ford New 2.38" Off,Bronco 5 x 5.50

Dynapro Lug Mount Rear Parking Brake Kit

These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 76-77 rear axles with Big Ford New flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Specifications

Rear End Axle: Big Ford New Style Bronco

Axle Offset: 2.38

Mount Type: Lug

Caliper Type: 4 - Red Powder Coat

Rotor Diameter: 12.19

Min Wheel Diameter Req'd*: 15

Calipers

Left Hand - Part No: 120-9703-RD

Right Hand - Part No: 120-9703-RD

Type: Dynapro Lug Mount

Finish Color: Red Powder Coat

Piston Count: 4

Piston 1 Bore (in): 1.38

Piston 2 Bore (in): 1.38

Piston Area (In²): 3.00

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 7812

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-13327

Right Hand - Part No: 160-13327

Type: Ultralite HP 32 & Hat

Style: Plain Face

Surface Finish: Plain

Material: Iron

Outside Diameter (in): 12.19

Width (in): 0.81

Vane Count: 32 V

Design Type: ULHP

Bedded: No

Dynamically Balanced: No
