Wilwood FDL-M Front Kit,11.30" 1 PC Rotor&Hub,Red 60-68 Ford/Mercury Full

Classic Series Dynalite Front Brake Kit

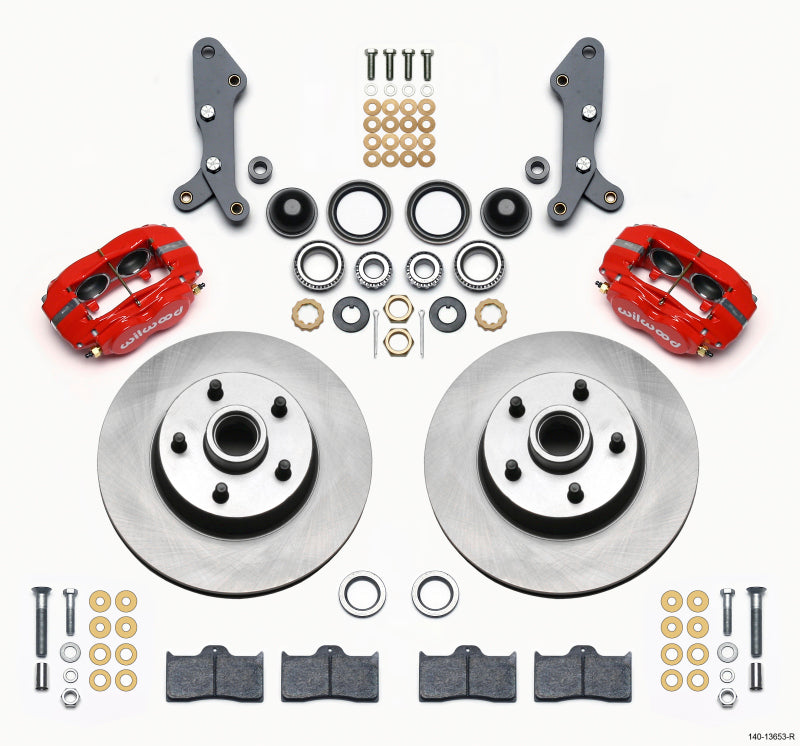

Wilwood's Classic Series front disc brake kits for 1960 to 1968 Ford & Mercury full size offer disc brake upgrade solutions for OEM Drum spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94 thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware and detailed installation instructions.

Specifications

OE Hub Offset: +.18

Spindle Type: Factory Drum Spindle

Mount Type: Lug

Caliper Type: 4 - Red Powder Coat

Rotor Diameter: 11.3

Min Wheel Diameter Req'd*: 14

Calipers

Left Hand - Part No: 120-13551-RD

Right Hand - Part No: 120-13551-RD

Type: Forged Dynalite-M

Finish Color: Red Powder Coat

Piston Count: 4

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.75

Piston Area (In²): 4.80

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 7112

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-14321

Right Hand - Part No: 160-14321

Type: 1 PC Hub and Rotor

Style: Plain Face

Surface Finish: Plain

Material: Iron

Outside Diameter (in): 11.29

Width (in): 0.94

Vane Count: Vented

Design Type: ULHP

Bedded: No

Dynamically Balanced: No

Vehicle Fitments:
