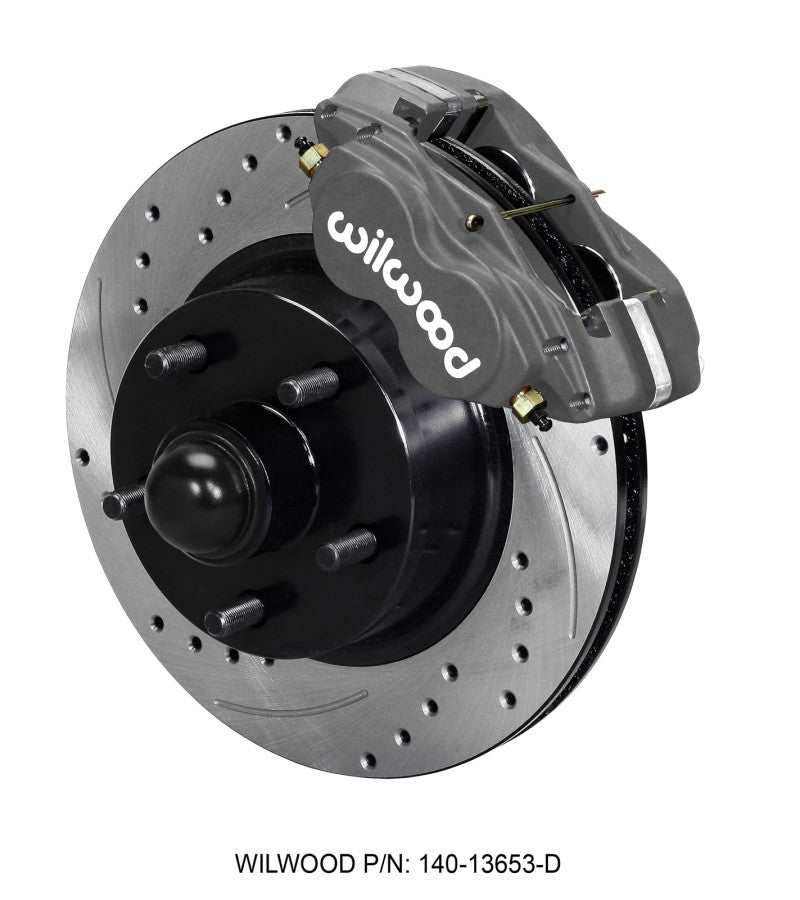

Wilwood FDL-M Front Kit,11.30" 1 PC Rotor&Hub-Drill,60-68 Ford
Front Brake Kit
Classic Series Dynalite Front Brake Kit
Wilwood's Classic Series front disc brake kits for 1960 to 1968 Ford & Mercury full size offer disc brake upgrade solutions for OEM Drum spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94" thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware and detailed installation instructions.
Specifications
| OE Hub Offset: | +.18 |
| Spindle Type: | Factory Drum Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Anodize |
| Rotor Diameter: | 11.3 |
| Min Wheel Diameter Req'd*: | 14 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13551 |
| Right Hand - Part No: | 120-13551 |
| Type: | Forged Dynalite-M |
| Finish Color: | Type III Ano |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-14324-BK |
| Right Hand - Part No: | 160-14323-BK |
| Type: | 1 PC Hub and Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 11.29 |
| Width (in): | 0.94 |
| Vane Count: | Vented |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1964 - 1968 | Ford | Country Squire | Base |
| 1964 - 1968 | Ford | Custom 500 | Base |
| 1965 - 1968 | Ford | LTD | Base |
| 1967 | Mercury | Brougham | Base |
| 1964 - 1968 | Mercury | Colony Park | Base |
| 1966 - 1967 | Mercury | Marauder | Base |
| 1967 - 1968 | Mercury | Marquis | Base |
