Wilwood FDL-M Front Kit, 11.30" 1 PC Rotor&Hub, Red, 1965-1969 Mustang Disc
Front Brake Kit
Classic Series Dynalite Front Brake Kit

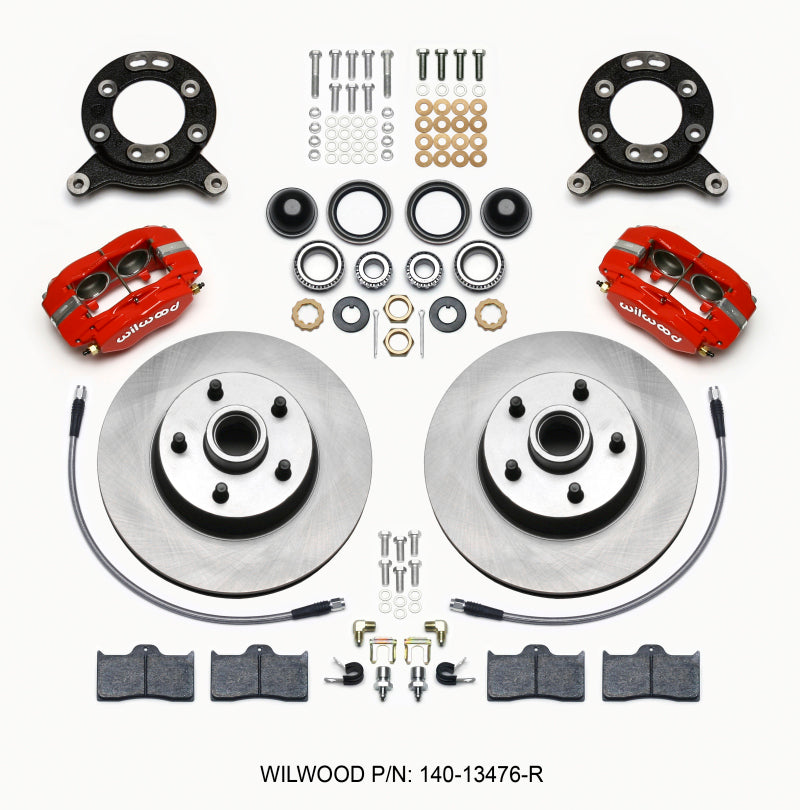

Wilwood's Classic Series front disc brake kits for 1965 to 1969 Ford Mustangs offer disc brake upgrade solutions for OEM drum or disc spindles. These kits feature the FDL-M four piston forged aluminum caliper and 11.30" diameter x 0.94" thick one-piece rotors. The FDL-M caliper is a modified version of the time-tested Forged Dynalite caliper, and provides the greatest amount of wheel clearance of any four piston caliper in its size class. The OEM style one-piece cast iron rotors with integrated hubs simplify installation while providing superb dimensional stability and wear resistance. These versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and clear most 14" OEM disc brake wheels. Kits will not fit OEM drum brake wheels. Classic Series FDL-M kits can be used with either manual or power boost master cylinders, and come complete with calipers, rotors, brackets, hardware, flex lines and detailed installation instructions.
Specifications
| OE Hub Offset: | .00 |
| Spindle Type: | Factory Drum SpindleFactory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 11.3 |
| Min Wheel Diameter Req'd*: | 14 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13551-RD |
| Right Hand - Part No: | 120-13551-RD |
| Type: | Forged Dynalite-M |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-14321 |
| Right Hand - Part No: | 160-14321 |
| Type: | 1 PC Hub and Rotor |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 11.29 |
| Width (in): | 0.94 |
| Vane Count: | Vented |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970 | Ford | Maverick | Base |
| 1965 - 1969 | Ford | Mustang | Base, Shelby GT-350 |
| 1969 | Ford | Mustang | Boss 429, Boss 302 |
| 1966 | Ford | Mustang | Shelby GT-350H |
| 1967 - 1969 | Ford | Mustang | Shelby GT-500 |
| 1968 | Ford | Mustang | Shelby GT-500KR |
| 1967 - 1969 | Ford | Ranchero | 500 |
| 1967 | Ford | Ranchero | 500 XL |
| 1964 - 1969 | Ford | Ranchero | Base |
| 1966 | Ford | Ranchero | Custom |
| 1968 - 1969 | Ford | Ranchero | GT |
| 1969 | Ford | Torino | Cobra, Squire |
| 1968 - 1969 | Ford | Torino | GT, Base |
| 1964 - 1965 | Mercury | Comet | 404, 202 |
| 1964 - 1969 | Mercury | Comet | Base |
| 1969 | Mercury | Cougar | Boss 302, Cobra Jet, Boss 429 |
| 1967 - 1969 | Mercury | Cougar | XR-7, Base |
| 1968 - 1969 | Mercury | Montego | Base, MX |
