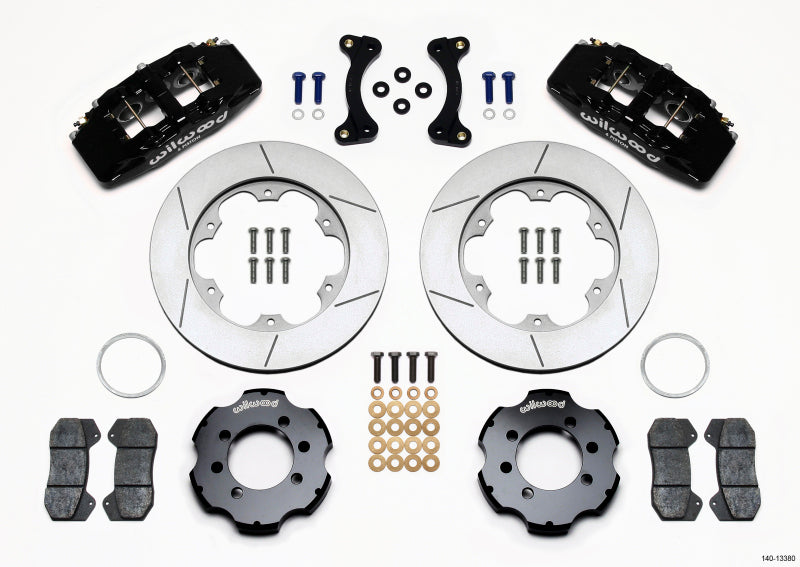

Forged Dynapro 6 Big Brake Front Brake Kit (Hat)
Forged Billet Dynapro 6 calipers, oversized GT Spec-37 rotors, and high performance Wilwood brake pads deliver big brake stopping power with high-tech style for front wheel drive sport compacts. These kits are the perfect complement to wheel, tire, and suspension upgrades. Options for caliper finish and rotor design make it simple to match the brake response and style preferences on all types of daily drivers, race vehicles, and ultra-styled show machines. Each kit is engineered specific for each vehicle. They are fully compatible with OE master cylinder output while retaining the full factory ABS functions.
| Kit Summary |
|---|
| Spindle Type: |
Factory Disc Spindle |
| Mount Type: |
Lug |
| Caliper Type: |
6 - Black Powder Coat |
| Rotor Diameter: |
11 |
| Min Wheel Diameter Req'd*: |
15 |
| Calipers |
|---|
| Type: |
Dynapro 6 |
| Finish Color: |
Black Powder Coat |
| Piston Count: |
6 |
| Piston Area (In²): |
3.08 |
| Piston Type: |
Stainless |
| Mount Type: |
Lug |
| Brake Pad Plate: |
6712 |
| Brake Pad Area (In²): |
7.3 |
| Brake Pad Volume (In³): |
2.4 |
| Pad Compound: |
BP-10 |
| Rotors |
|---|
| Type: |
GT 72 Straight Vane |
| Style: |
GT Slotted |
| Surface Finish: |
Plain |
| Material: |
Spec-37 Iron |
| Outside Diameter (in): |
11 |
| Width (in): |
0.81 |
| Vane Count: |
72 V |
| Design Type: |
GT |
| Bedded: |
No |
| Dynamically Balanced: |
No |
| Rotor Hats |
|---|
| Type: |
Big Brake Hat - Short Offset |
| Material: |
Aluminum |
| Finish Color: |
Black E-Coat |
| Hat Offset Dimension (in): |
0.75 |
| Bolt Circle 1: |
4 x 3.93 |
| Bolt Circle 2: |
|
| Bolt Circle 3: |
|
| Stud Diameter - BC 1: |
0.5 |
| Stud Diameter - BC 2: |
0 |
| Stud Diameter - BC 3: |
0 |
THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle.
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 2001 - 2005 |
Mazda |
Miata |
LS, Base |
| 2004 - 2005 |
Mazda |
Miata |
Mazdaspeed |
| 2001 - 2003 |
Mazda |
Miata |
SE |
| 2003 |
Mazda |
Miata |
Shinsen |
