Front Brake Kit
Dynapro Dust-Boot Pro Series Front Brake Kit

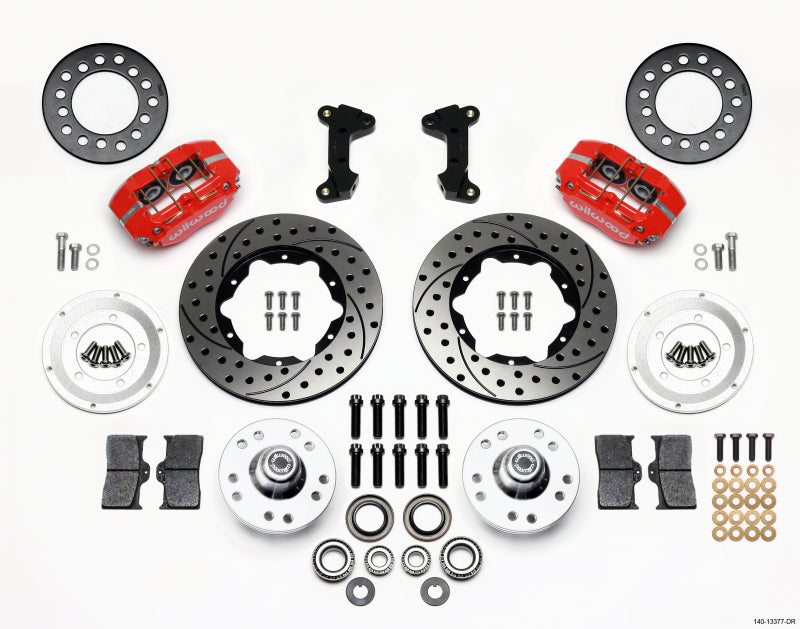

Wilwood's new DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable Forged Dynapro Dustboot caliper, these kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. DP-DB Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.
Specifications
| OE Hub Offset: |
.00 |
| Spindle Type: |
Drop Spindle Factory Disc Spindle
|
| Mount Type: |
Lug |
| Caliper Type: |
4 - Red Powder Coat |
| Rotor Diameter: |
11 |
| Min Wheel Diameter Req'd*: |
14 |
| Calipers |
|---|
| Left Hand - Part No: |
120-11482-RD |
| Right Hand - Part No: |
120-11482-RD |
| Type: |
Dynapro Dust-Boot |
| Finish Color: |
Red Powder Coat |
| Piston Count: |
4 |
| Piston Area (In²): |
4.80 |
| Piston Type: |
Aluminum |
| Mount Type: |
Lug |
| Brake Pad Plate: |
7812 |
| Brake Pad Area (In²): |
6.36 |
| Brake Pad Volume (In³): |
2.1 |
| Pad Compound: |
BP-10 |
| Rotors |
|---|
| Left Hand - Part No: |
160-7100-BK |
| Right Hand - Part No: |
160-7099-BK |
| Type: |
SRP Drilled Rotor |
| Style: |
SRP Drilled & Slotted |
| Surface Finish: |
Black Electro Coat |
| Material: |
Iron |
| Outside Diameter (in): |
11 |
| Width (in): |
0.81 |
| Vane Count: |
30 V |
| Design Type: |
SRP-BLK |
| Bedded: |
No |
| Dynamically Balanced: |
No |
| Hubs |
|---|
| Hub - Part No: |
270-11252 |
| Type: |
Hub - Vented Rotor Offset |
| Material: |
Aluminum |
| Finish Color: |
Bare |
| Mount Style: |
Adapter |
| Bolt Circle 1: |
5 x 4.50 |
| Bolt Circle 2: |
5 x 4.75 |
| Stud Diameter - BC 1: |
1/2-20 |
| Stud Diameter - BC 2: |
1/2-20 |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 1975 - 1978 |
Ford |
Mustang II |
Ghia, Base, Mach 1 |
| 1975 - 1980 |
Ford |
Pinto |
Base |
| 1976 - 1980 |
Ford |
Pinto |
Squire, Pony |
| 1975 - 1980 |
Mercury |
Bobcat |
Base |
| 1976 |
Mercury |
Bobcat |
MPG Runabout, S Runabout |
| 1976 - 1980 |
Mercury |
Bobcat |
Runabout, Villager |
