Wilwood Dust Boot Kir- Kit,Front,WWE Pro Spindle,DP-DB,11.00 - Rotor

Dynapro Dust-Boot Pro Series Front Brake Kit

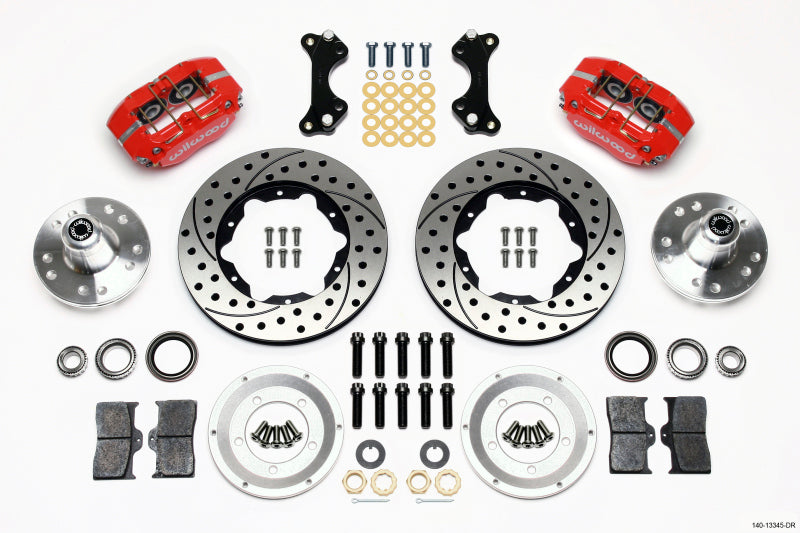

Wilwood's new DP-DB Pro-Series Front Hub Kits offer disc brake upgrade solutions for OEM spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. Based on the venerable Forged Dynapro Dustboot caliper, these kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-booted aluminum pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. DP-DB Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors, hub assembly, brackets and hardware. Kit installation requires purchase of additional brake lines shown below.

Specifications

OE Hub Offset: +.10

Spindle Type: Factory Disc Spindle

Mount Type: Lug

Caliper Type: 4 - Red Powder Coat

Rotor Diameter: 11

Min Wheel Diameter Req'd*: 14

Calipers

Left Hand - Part No: 120-11482-RD

Right Hand - Part No: 120-11482-RD

Type: Dynapro Dust-Boot

Finish Color: Red Powder Coat

Piston Count: 4

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.75

Piston Area (In²): 4.80

Piston Type: Aluminum

Mount Type: Lug

Brake Pad Plate: 7812

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-7100-BK

Right Hand - Part No: 160-7099-BK

Type: SRP Drilled Rotor

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 11

Width (in): 0.81

Vane Count: 30 V

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: No

Hubs

Hub - Part No: 270-10044

Type:Hub - Vented Rotor Offset

Material: Aluminum

Finish Color: Bare

Mount Style: Adapter

Bolt Circle 1: 5 x 4.50

Bolt Circle 2: 5 x 4.75

Stud Diameter - BC 1: 1/2-20

Stud Diameter - BC 2: 1/2-20
