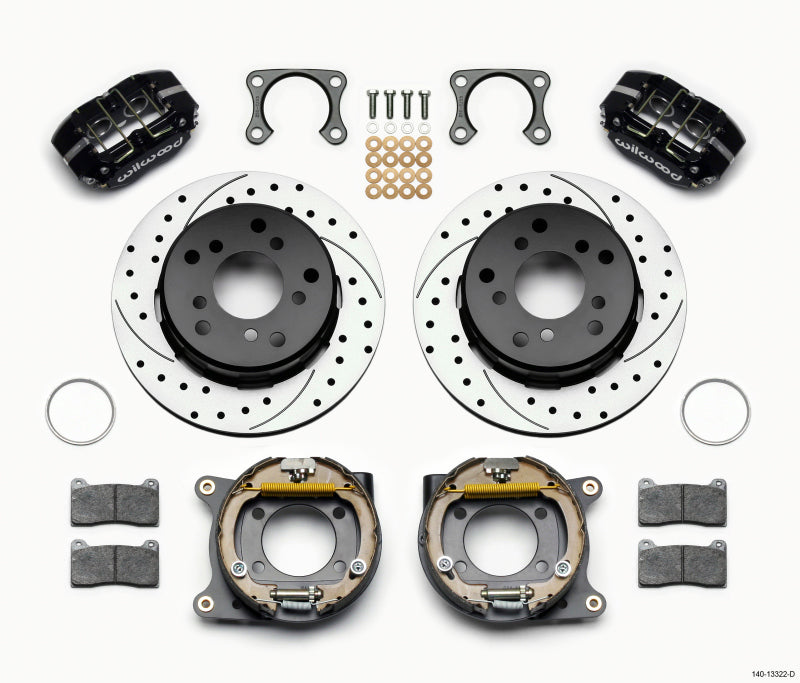

Wilwood Dynapro Lug Mount Rear Parking Brake Kit

Dynapro Lug Mount Rear Parking Brake Kit

These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 65-77 rear axles with Big Ford flange and bearing. (normally: OE 11 inch diameter brakes and 3300 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Kit Summary

Rear End Axle: Big Ford Bronco
Axle Offset: 2.36
Mount Type: Lug
Caliper Type: 4 - Black Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15

Kit Components & Specification:

Calipers

Type: Dynapro Lug Mount
Finish Color: Black Powder Coat
Piston Count: 4
Piston 1 Bore(in): 1.38
Piston 2 Bore(in): 1.38
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10

Rotors

Type: SRP Drilled Rotor & Hat
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
