Wilwood DPL P/S Park Brake Kit, Small Ford 2.36" Off, Bronco 5 x 5.50 *Discontinued
Wilwood DPL P/S Park Brake Kit, Small Ford 2.36" Off, Bronco 5 x 5.50 *Discontinued
Low stock: 6 left
Emissions
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Rear Brake Kit - Rear Kit

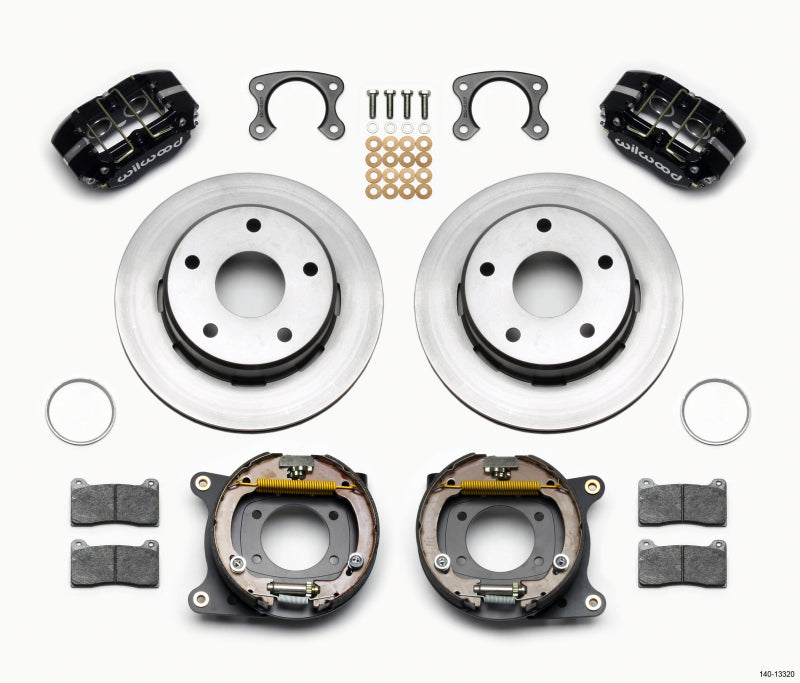

Dynapro Lug Mount Rear Parking Brake Kit
These versions of DPL Pro-Series rear disc kits provides a complete solution for Bronco 65-75 rear axles with Small Ford flange and bearing. (normally: OE 10 inch diameter brakes and 2700 or 2900 GVW.) Forged Billet Dynapro Lug Mount four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking to compliment front big brake upgrades available for Bronco platform. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Specifications
| Rear End Axle: | Small Ford Bronco |
| Axle Offset: | 2.36 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Anodize |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-9703 |
| Right Hand - Part No: | 120-9703 |
| Type: | Dynapro Lug Mount |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7812 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-13327 |
| Right Hand - Part No: | 160-13327 |
| Type: | Ultralite HP 32 & Hat |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
