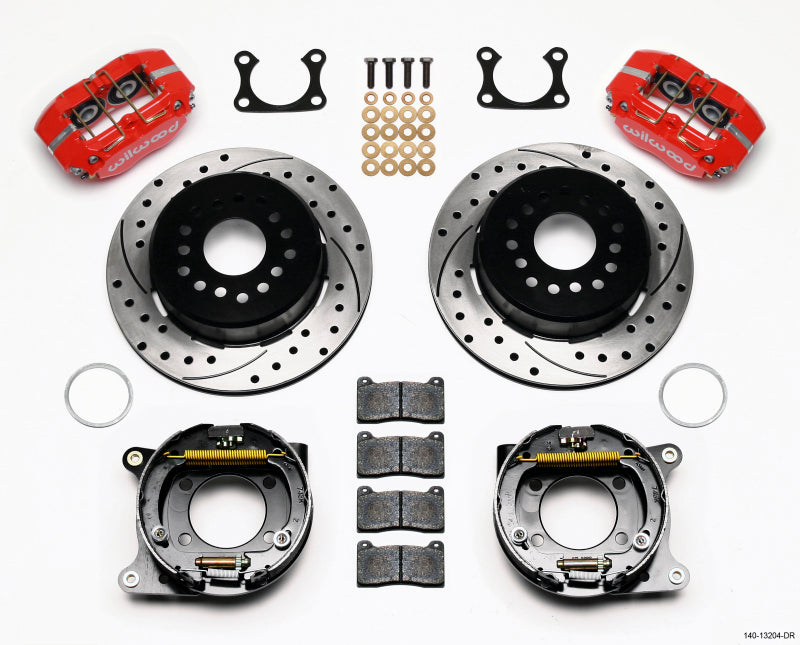

Wilwood DP-DB P/S Park Brake Kit, Drilled, Red, Big Ford 2.36" Offset
Rear Brake Kit - Rear Kit
Forged Dynalite Internal-Dust Seal Rear Parking Brake Kit
FDLI-DS Pro-Series rear disc kits provide a complete solution for popular muscle car rear axles that require a parking brake. Forged Dynalite Internal Dust Seal calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-wiper sealed stainless steel pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Specifications
| Rear End Axle: | Big Ford |
| Axle Offset: | 2.36 |
| Mount Type: | Lug |
| Caliper Type: | 4-Red Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-11481-RD |
| Right Hand - Part No: | 120-11481-RD |
| Type: | Dynapro Dust-Boot |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 3.00 |
| Piston Type: | Aluminum |
| Mount Type: | Lug |
| Brake Pad Plate: | 7812 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-9813-BK |
| Right Hand - Part No: | 160-9812-BK |
| Type: | SRP Drilled Rotor & Hat |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
