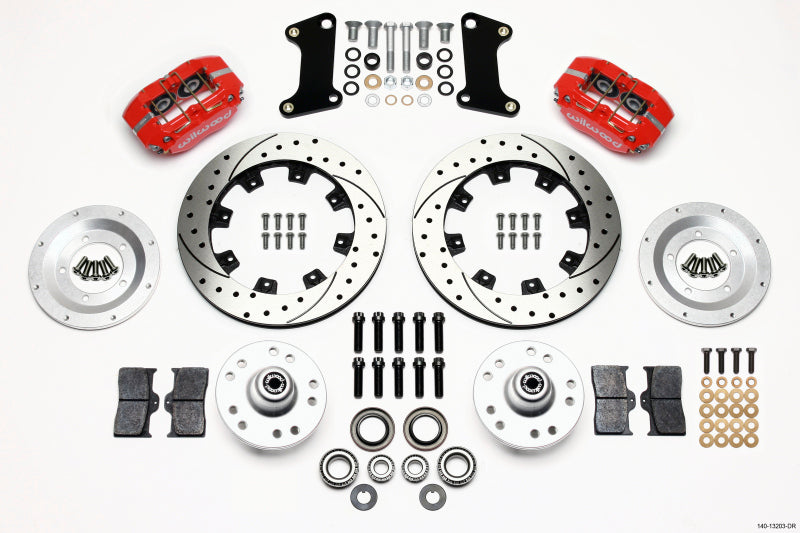

Front Brake Kit
FDLI-DS Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged Dynalite Internal Dust Seal calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-wiper sealed stainless steel pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
Specifications
| OE Hub Offset: |
+.19 |
| Spindle Type: |
Factory Drum SpindleDrop Spindle Factory Disc Spindle |
| Mount Type: |
Lug |
| Caliper Type: |
6 - Red Powder Coat |
| Rotor Diameter: |
12.19 |
| Min Wheel Diameter Req'd*: |
15 |
| Calipers |
|---|
| Left Hand - Part No: |
120-11482-RD |
| Right Hand - Part No: |
120-11482-RD |
| Type: |
Dynapro Dust-Boot |
| Finish Color: |
Red Powder Coat |
| Piston Count: |
4 |
| Piston Area (In²): |
4.80 |
| Piston Type: |
Aluminum |
| Mount Type: |
Lug |
| Brake Pad Plate: |
7812 |
| Brake Pad Area (In²): |
6.36 |
| Brake Pad Volume (In³): |
2.1 |
| Pad Compound: |
BP-10 |
| Rotors |
|---|
| Left Hand - Part No: |
160-7104-BK |
| Right Hand - Part No: |
160-7103-BK |
| Type: |
SRP Drilled Rotor |
| Style: |
SRP Drilled & Slotted |
| Surface Finish: |
Black Electro Coat |
| Material: |
Iron |
| Outside Diameter (in): |
12.19 |
| Width (in): |
0.81 |
| Vane Count: |
32 V |
| Design Type: |
SRP-BLK |
| Bedded: |
No |
| Dynamically Balanced: |
No |
| Hubs |
|---|
| Hub - Part No: |
270-7274 |
| Type: |
Hub - Vented Rotor Offset |
| Material: |
Aluminum |
| Finish Color: |
Bare |
| Mount Style: |
Adapter |
| Bolt Circle 1: |
5 x 4.50 |
| Bolt Circle 2: |
5 x 4.75 |
| Stud Diameter - BC 1: |
1/2-20 |
| Stud Diameter - BC 2: |
1/2-20 |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 1973 - 1974 |
Buick |
Apollo |
Base |
| 1965 - 1967 |
Buick |
Gran Sport |
Base |
| 1971 |
Buick |
Riviera |
Base, Gran Sport |
| 1970 - 1972 |
Buick |
Skylark |
350 |
| 1964 - 1972 |
Buick |
Skylark |
Base |
| 1968 - 1972 |
Buick |
Skylark |
Custom |
| 1967 - 1969 |
Chevrolet |
Camaro |
Z28, SS, Base, RS |
| 1967 - 1968 |
Chevrolet |
Chevelle |
300 |
| 1967 - 1969 |
Chevrolet |
Chevelle |
300 Deluxe |
| 1969 - 1972 |
Chevrolet |
Chevelle |
Concours Estate, Greenbrier |
| 1967 - 1972 |
Chevrolet |
Chevelle |
Concours, Base, SS |
| 1967 |
Chevrolet |
Chevelle |
Deluxe |
| 1968 - 1972 |
Chevrolet |
Chevelle |
Nomad, Malibu |
| 1964 - 1967 |
Chevrolet |
Chevy II |
Base, Nova SS |
| 1964 - 1968 |
Chevrolet |
Chevy II |
Nova |
| 1967 - 1972 |
Chevrolet |
El Camino |
Base |
| 1968 - 1972 |
Chevrolet |
El Camino |
SS, Custom |
| 1970 - 1972 |
Chevrolet |
Monte Carlo |
Base |
| 1969 - 1974 |
Chevrolet |
Nova |
Base |
| 1973 - 1974 |
Chevrolet |
Nova |
Custom |
| 1971 - 1972 |
GMC |
Sprint |
Base |
| 1972 |
GMC |
Sprint |
Custom |
| 1967 - 1971 |
Oldsmobile |
442 |
Base |
| 1967 - 1972 |
Oldsmobile |
Cutlass |
Base |
| 1972 |
Oldsmobile |
Cutlass |
Cruiser |
| 1967 |
Oldsmobile |
Cutlass |
Holiday, Turnpike Cruiser |
| 1968 - 1972 |
Oldsmobile |
Cutlass |
S |
| 1971 - 1972 |
Oldsmobile |
Cutlass Supreme |
Base |
| 1973 - 1974 |
Oldsmobile |
Omega |
Base |
| 1967 - 1972 |
Oldsmobile |
Vista Cruiser |
Base |
| 1967 |
Oldsmobile |
Vista Cruiser |
Custom |
| 1967 |
Pontiac |
Firebird |
326 |
| 1968 - 1969 |
Pontiac |
Firebird |
350 |
| 1969 |
Pontiac |
Firebird |
350 HO, Trans Am |
| 1967 - 1969 |
Pontiac |
Firebird |
400, Base, Sprint |
| 1967 - 1968 |
Pontiac |
Firebird |
HO |
| 1969 |
Pontiac |
Grand Prix |
Base |
| 1967 - 1971 |
Pontiac |
GTO |
Base |
| 1970 - 1971 |
Pontiac |
GTO |
The Judge |
| 1964 - 1972 |
Pontiac |
LeMans |
Base |
| 1972 |
Pontiac |
LeMans |
Luxury |
| 1969 - 1970 |
Pontiac |
LeMans |
Safari |
| 1970 - 1972 |
Pontiac |
LeMans |
Sport |
| 1971 |
Pontiac |
LeMans |
T37 |
| 1967 |
Pontiac |
Tempest |
Safari, Custom, Base |
| 1971 - 1974 |
Pontiac |
Ventura |
Base |
| 1973 - 1974 |
Pontiac |
Ventura |
Custom |
| 1974 |
Pontiac |
Ventura |
GTO |
