Wilwood DP-DB Front Kit, 12.19", Drilled, 67-69 Camaro, 64-72 Nova, Chevelle
Front Brake Kit

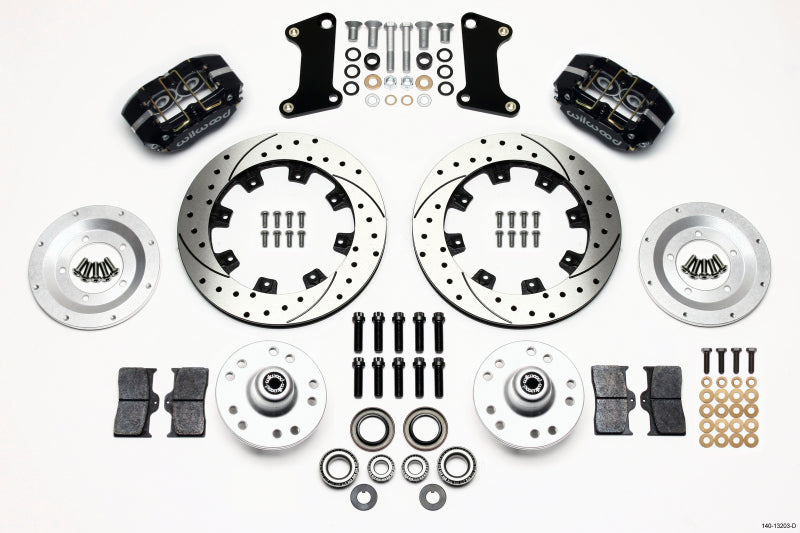

Forged Dynalite Internal-Dust Seal Big Brake Front Brake Kit (Hub)
FDLI-DS Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged Dynalite Internal Dust Seal calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power. These kits were developed for applications or locations that require or prefer a dust-sealed piston. Dust-wiper sealed stainless steel pistons provide added protection against road or track born dirt and debris on low to intermediate temperature range applications that may also operate in harsh environments. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
Specifications
| OE Hub Offset: | +.19 |
| Spindle Type: | Factory Drum Spindle Drop Spindle Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Anodize |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1973 - 1974 | Buick | Apollo | Base |
| 1965 - 1967 | Buick | Gran Sport | Base |
| 1971 | Buick | Riviera | Base, Gran Sport |
| 1970 - 1972 | Buick | Skylark | 350 |
| 1964 - 1972 | Buick | Skylark | Base |
| 1968 - 1972 | Buick | Skylark | Custom |
| 1967 - 1969 | Chevrolet | Camaro | Z28, RS, Base, SS |
| 1967 - 1968 | Chevrolet | Chevelle | 300 |
| 1967 - 1969 | Chevrolet | Chevelle | 300 Deluxe |
| 1967 - 1972 | Chevrolet | Chevelle | Concours, Base, SS |
| 1967 | Chevrolet | Chevelle | Deluxe |
| 1969 - 1972 | Chevrolet | Chevelle | Greenbrier, Concours Estate |
| 1968 - 1972 | Chevrolet | Chevelle | Nomad, Malibu |
| 1964 - 1968 | Chevrolet | Chevy II | Nova |
| 1964 - 1967 | Chevrolet | Chevy II | Nova SS, Base |
| 1967 - 1972 | Chevrolet | El Camino | Base |
| 1968 - 1972 | Chevrolet | El Camino | SS, Custom |
| 1970 - 1972 | Chevrolet | Monte Carlo | Base |
| 1969 - 1974 | Chevrolet | Nova | Base |
| 1973 - 1974 | Chevrolet | Nova | Custom |
| 1971 - 1972 | GMC | Sprint | Base |
| 1972 | GMC | Sprint | Custom |
| 1967 - 1971 | Oldsmobile | 442 | Base |
| 1967 - 1972 | Oldsmobile | Cutlass | Base |
| 1972 | Oldsmobile | Cutlass | Cruiser |
| 1968 - 1972 | Oldsmobile | Cutlass | S |
| 1967 | Oldsmobile | Cutlass | Turnpike Cruiser, Holiday |
| 1971 - 1972 | Oldsmobile | Cutlass Supreme | Base |
| 1973 - 1974 | Oldsmobile | Omega | Base |
| 1967 - 1972 | Oldsmobile | Vista Cruiser | Base |
| 1967 | Oldsmobile | Vista Cruiser | Custom |
| 1967 | Pontiac | Firebird | 326 |
| 1968 - 1969 | Pontiac | Firebird | 350 |
| 1969 | Pontiac | Firebird | 350 HO, Trans Am |
| 1967 - 1968 | Pontiac | Firebird | HO |
| 1967 - 1969 | Pontiac | Firebird | Sprint, 400, Base |
| 1969 | Pontiac | Grand Prix | Base |
| 1967 - 1971 | Pontiac | GTO | Base |
| 1970 - 1971 | Pontiac | GTO | The Judge |
| 1964 - 1972 | Pontiac | LeMans | Base |
| 1972 | Pontiac | LeMans | Luxury |
| 1969 - 1970 | Pontiac | LeMans | Safari |
| 1970 - 1972 | Pontiac | LeMans | Sport |
| 1971 | Pontiac | LeMans | T37 |
| 1967 | Pontiac | Tempest | Base, Custom, Safari |
| 1971 - 1974 | Pontiac | Ventura | Base |
| 1973 - 1974 | Pontiac | Ventura | Custom |
| 1974 | Pontiac | Ventura | GTO |
