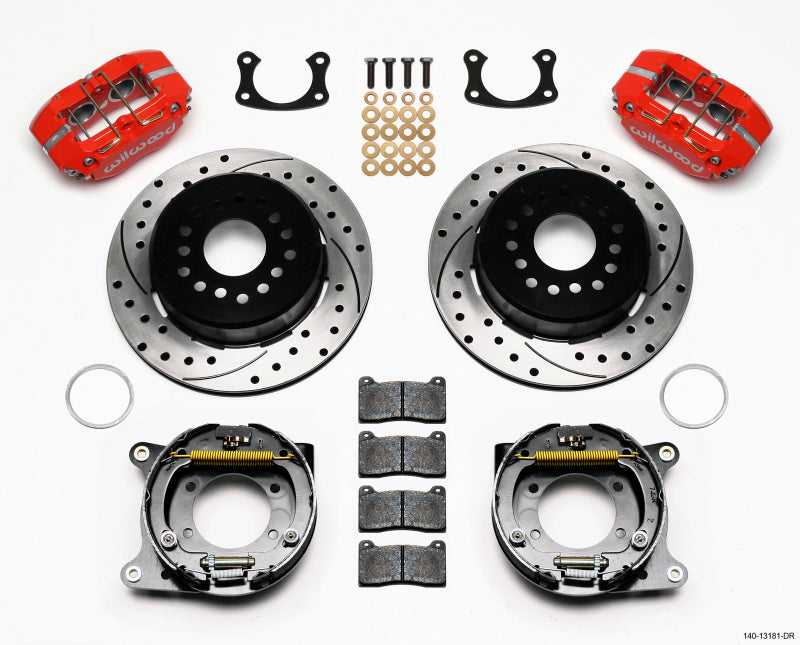

• Wilwood DPL P/S P-B Kit, Drilled-Red, New Big Ford 2.50" Offset 140-13181-DR Photo - Primary
1 1
Wilwood Authorized Dealer

Wilwood DPL P/S P-B Kit, Drilled-Red, New Big Ford 2.50" Offset *Discontinued

Wilwood DPL P/S P-B Kit, Drilled-Red, New Big Ford 2.50" Offset *Discontinued

sku: 0DGFR | mpn: 140-13181-DR
$1,558.20
$1,558.20 $1,558.20
Sale Sold out
Shipping calculated at checkout.

46 in stock

Emissions

This is not an emissions item.
  • Ships Worldwide
  • Easy Returns
  • Fast Shipping

Rear Brake Kit - Rear Kit

Dynapro Lug Mount Rear Parking Brake Kit

This group of DPL Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged Billet Dynapro Lug Mount four piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Specifications

Rear End Axle: Big Ford New Style
Axle Offset: 2.5
Mount Type: Lug
Caliper Type: 4 -Red Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 15
Calipers
Left Hand - Part No: 120-9703-RD
Right Hand - Part No: 120-9703-RD
Type: Dynapro Lug Mount
Finish Color: Red Powder Coat
Piston Count: 4
Piston Area (In²): 3.00
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-9813-BK
Right Hand - Part No: 160-9812-BK
Type: SRP Drilled Rotor & Hat
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No
