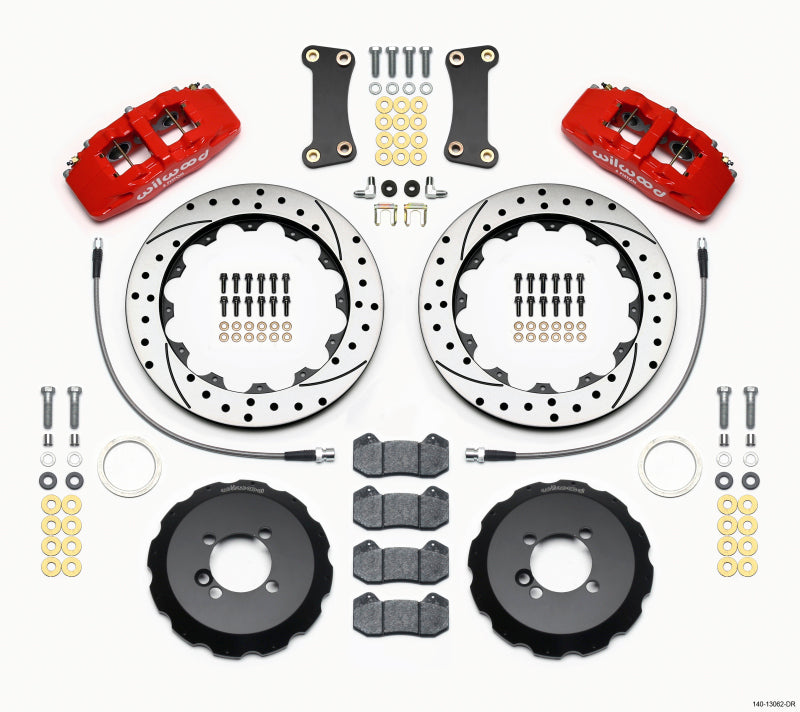

Wilwood DP6 Front Hat Kit,12.88",2002-Up Mini Cooper w/Lines

Forged Dynapro 6 Big Brake Front Brake Kit (Hat)

The enhanced brake capacity and pad performance of the DynaPro 6 forged billet six-piston caliper is combined with 12.88 diameter rotors for this group of front wheel drive sport compact kits. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered vehicle specific to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Specifications

Spindle Type: Factory Disc Spindle

Mount Type: Lug

Caliper Type: 6 - Red Powder Coat

Rotor Diameter: 12.88

Min Wheel Diameter Req'd*: 17

Calipers

Left Hand - Part No: 120-13439-RD

Right Hand - Part No: 120-13438-RD

Type: Dynapro 6

Finish Color: Red Powder Coat

Piston Count: 6

Piston 1 Bore (in): 1.38

Piston 2 Bore (in): 1

Piston 3 Bore (in): 1

Piston Area (In²): 3.08

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 6712

Brake Pad Area (In²): 7.3

Brake Pad Volume (In³): 2.4

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-9962-BK

Right Hand - Part No: 160-9961-BK

Type: SRP Drilled Rotor

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 12.88

Width (in): 0.81

Vane Count: 48 CV

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: No

Rotor Hats

Hat - Part No: 170-13063

Type: Big Brake Hat - Short Offset

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 0.88

Bolt Circle 1: 4 x 3.93

Stud Diameter - BC 1: 0.64

Stud Diameter - BC 2: 0

Stud Diameter - BC 3: 0

Vehicle Fitments:
