Wilwood FDL Front Kit, 11.88" 1 PC Rotor&Hub, Buick Rivera 1964-65
Front Brake Kit
Classic Series Dynalite Front Brake Kit

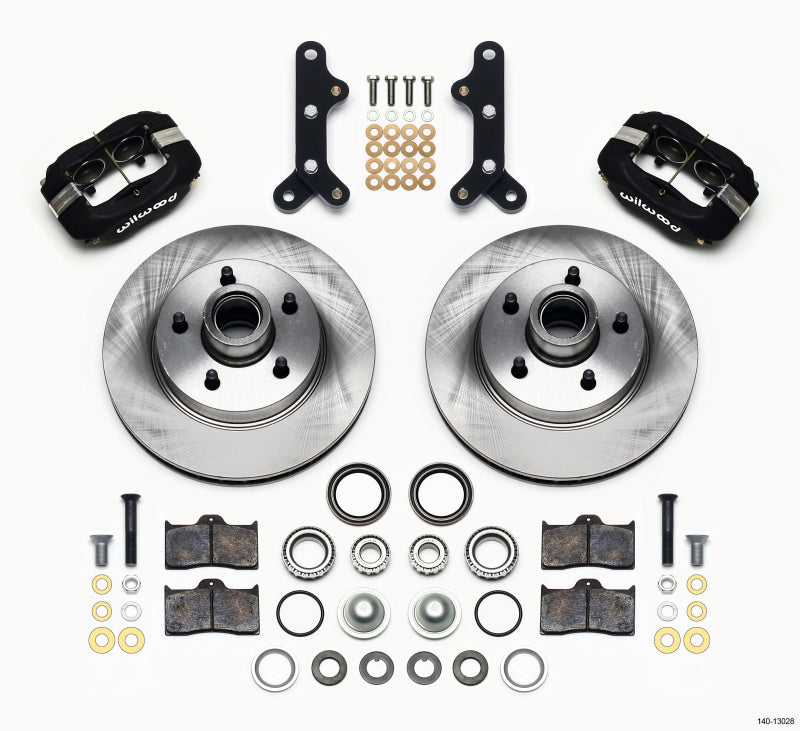

Wilwood's Classic Series front disc brake kits for Buick vehicles 1961 to 1964 (except Buick Special) and 1963 & 1965 Riviera, offer disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring a large 11.88" x 1.29" rotor and hub assembly. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL 1 piece kits can be used with either manual or power boost master cylinders. Kits are complete with calipers, rotors and, hub assembly brackets and hardware. Kit requires purchase of additional brake line kit shown below.
Specifications
| Spindle Type: | Factory Drum Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Type III Ano |
| Rotor Diameter: | 11.88 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-6814 |
| Right Hand - Part No: | 120-6814 |
| Type: | Forged Dynalite |
| Finish Color: | Type III Ano |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-12320 |
| Right Hand - Part No: | 160-12320 |
| Type: | 1 PC Hub and Rotor |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 11.88 |
| Width (in): | 1.29 |
| Vane Count: | Vented |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
