Wilwood DP6A Front Hub Kit, 12.19", Drill, Red, 1965-1969 Mustang Disc *Discontinued
Wilwood DP6A Front Hub Kit, 12.19", Drill, Red, 1965-1969 Mustang Disc *Discontinued
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
16 in stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyFront Brake Kit

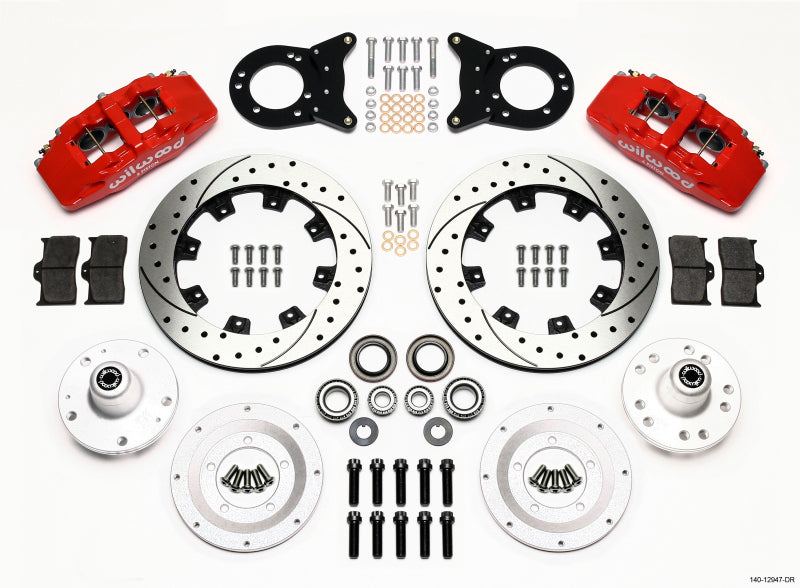

Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an inter.
Specifications
| OE Hub Offset: | +.09 |
| Spindle Type: | Factory Drum SpindleFactory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 6 - Red Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13429-RD |
| Right Hand - Part No: | 120-13428-RD |
| Type: | Dynapro 6 |
| Finish Color: | Red Powder Coat |
| Piston Count: | 6 |
| Piston Area (In²): | 5.06 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 6712 |
| Brake Pad Area (In²): | 7.3 |
| Brake Pad Volume (In³): | 2.4 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-7104-BK |
| Right Hand - Part No: | 160-7103-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
| Hubs | |
|---|---|
| Hub - Part No: | 270-11058 |
| Type: | Hub - Vented Rotor Offset |
| Material: | Aluminum |
| Finish Color: | Bare |
| Mount Style: | Adapter |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Stud Diameter - BC 1: | 1/2-20 |
| Stud Diameter - BC 2: | 1/2-20 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970 | Ford | Maverick | Base |
| 1969 | Ford | Mustang | Boss 429, Boss 302 |
| 1965 - 1969 | Ford | Mustang | Shelby GT-350, Base |
| 1966 | Ford | Mustang | Shelby GT-350H |
| 1967 - 1969 | Ford | Mustang | Shelby GT-500 |
| 1968 | Ford | Mustang | Shelby GT-500KR |
| 1967 - 1969 | Ford | Ranchero | 500 |
| 1967 | Ford | Ranchero | 500 XL |
| 1964 - 1969 | Ford | Ranchero | Base |
| 1966 | Ford | Ranchero | Custom |
| 1968 - 1969 | Ford | Ranchero | GT |
| 1968 - 1969 | Ford | Torino | GT, Base |
| 1969 | Ford | Torino | Squire, Cobra |
| 1964 - 1965 | Mercury | Comet | 202, 404 |
| 1964 - 1969 | Mercury | Comet | Base |
| 1967 - 1969 | Mercury | Cougar | Base, XR-7 |
| 1969 | Mercury | Cougar | Boss 302, Boss 429, Cobra Jet |
| 1968 - 1969 | Mercury | Montego | Base, MX |
