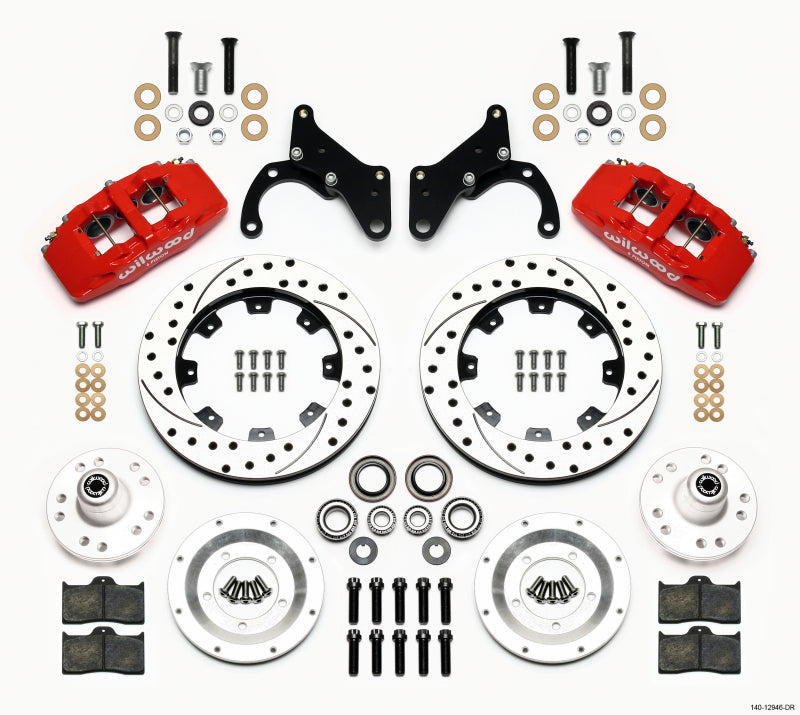

Wilwood DP6A Front Hub Kit, 12.19", Drilled, Red, 69-70 Impala Drum/Disc

Front Brake Kit
Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an inter.
Specifications
OE Hub Offset: | -.08 |
Spindle Type: | Factory Drum SpindleFactory Disc Spindle |
Mount Type: | Lug |
Caliper Type: | 6 - Red Powder Coat |
Rotor Diameter: | 12.19 |
Min Wheel Diameter Req'd*: | 15 |
Calipers | |
---|---|
Left Hand - Part No: | 120-13433-RD |
Right Hand - Part No: | 120-13432-RD |
Type: | Dynapro 6 |
Finish Color: | Red Powder Coat |
Piston Count: | 6 |
Piston Area (In²): | 5.06 |
Piston Type: | Stainless |
Mount Type: | Lug |
Brake Pad Plate: | 6712 |
Brake Pad Area (In²): | 7.3 |
Brake Pad Volume (In³): | 2.4 |
Pad Compound: | BP-10 |
Rotors | |
---|---|
Left Hand - Part No: | 160-12205-BK |
Right Hand - Part No: | 160-12204-BK |
Type: | SRP Drilled Rotor |
Style: | SRP Drilled & Slotted |
Surface Finish: | Black Electro Coat |
Material: | Iron |
Outside Diameter (in): | 12.19 |
Width (in): | 1.1 |
Vane Count: | 32 V |
Design Type: | SRP-BLK |
Bedded: | No |
Dynamically Balanced: | Yes |
Hubs | |
---|---|
Hub - Part No: | 270-12038 |
Type: | Hub - Vented Rotor Offset |
Material: | Aluminum |
Finish Color: | Bare |
Mount Style: | Adapter |
Bolt Circle 1: | 5 x 4.50 |
Bolt Circle 2: | 5 x 4.75 |
Stud Diameter - BC 1: | 1/2-20 |
Stud Diameter - BC 2: | 1/2-20 |
Vehicle Fitments:
Year | Make | Model | Submodel |
---|---|---|---|
1969 - 1970 | Chevrolet | Bel Air | Base |
1970 | Chevrolet | Biscayne | Base |
1970 | Chevrolet | Brookwood | Base |
1969 - 1970 | Chevrolet | Caprice | Base |
1970 - 1982 | Chevrolet | Corvette | Base |
1982 | Chevrolet | Corvette | Collector's Edition |
1978 | Chevrolet | Corvette | Silver Anniversary Edition, Indianapolis 500 Pace Car |
1975 - 1976 | Chevrolet | Corvette | Stingray |
1970 | Chevrolet | Estate | Base |
1969 - 1970 | Chevrolet | Impala | Base |
1970 | Chevrolet | Kingswood | Base, Estate |
1970 | Chevrolet | Townsman | Base |

Wilwood DP6A Front Hub Kit, 12.19", Drilled, Red, 69-70 Impala Drum/Disc
Sale price$2,000.94 USD
