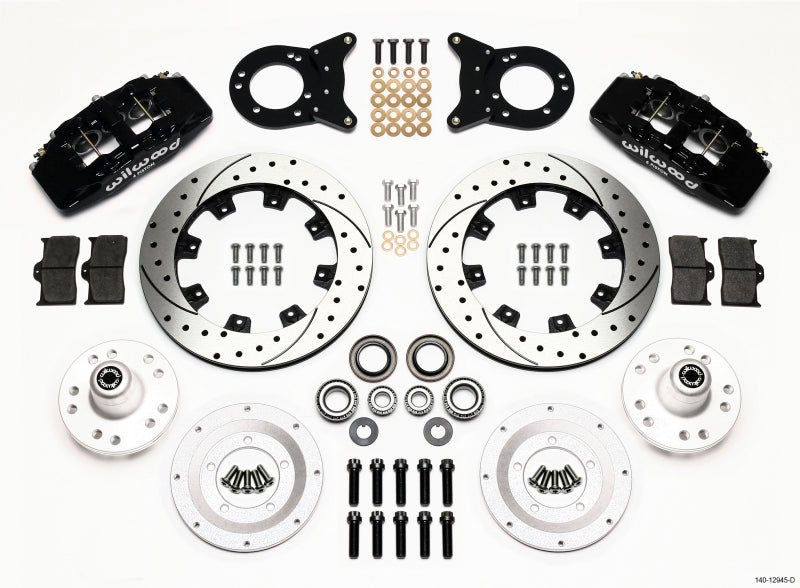

Wilwood DP6A Front Hub Kit,12.19",Drilled,1970-1973 Mustang Disc

Forged Dynapro 6 Big Brake Front Brake Kit (Hub)

DynaPro 6 forged billet calipers are combined with 12.19 diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods.

Specifications

OE Hub Offset: +.09

Spindle Type: Factory Drum Spindle Factory Disc Spindle

Mount Type: Lug

Caliper Type: 6 - Black Powder Coat

Rotor Diameter: 12.19

Min Wheel Diameter Req'd*: 15

Calipers

Left Hand - Part No: 120-13429-BK

Right Hand - Part No: 120-13428-BK

Type: Dynapro 6

Finish Color: Black Powder Coat

Piston Count: 6

Piston Area (In²): 5.06

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 6712

Brake Pad Area (In²): 7.3

Brake Pad Volume (In³): 2.4

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-7104-BK

Right Hand - Part No: 160-7103-BK

Type: SRP Drilled Rotor

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 12.19

Width (in): 0.81

Vane Count: 32 V

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: No

Hubs

Hub - Part No: 270-11070

Type: Hub - Vented Rotor Offset

Material: Aluminum

Finish Color: Bare

Mount Style: Adapter

Bolt Circle 1: 5 x 4.50

Bolt Circle 2: 5 x 4.75

Stud Diameter - BC 1: 1/2-20

Stud Diameter - BC 2: 1/2-20

Vehicle Fitments:
