Wilwood FDL Front Kit, 11.28" 1 PC Rotor&Hub, Ford 1949-1953
Front Brake Kit
Classic Series Dynalite Front Brake Kit

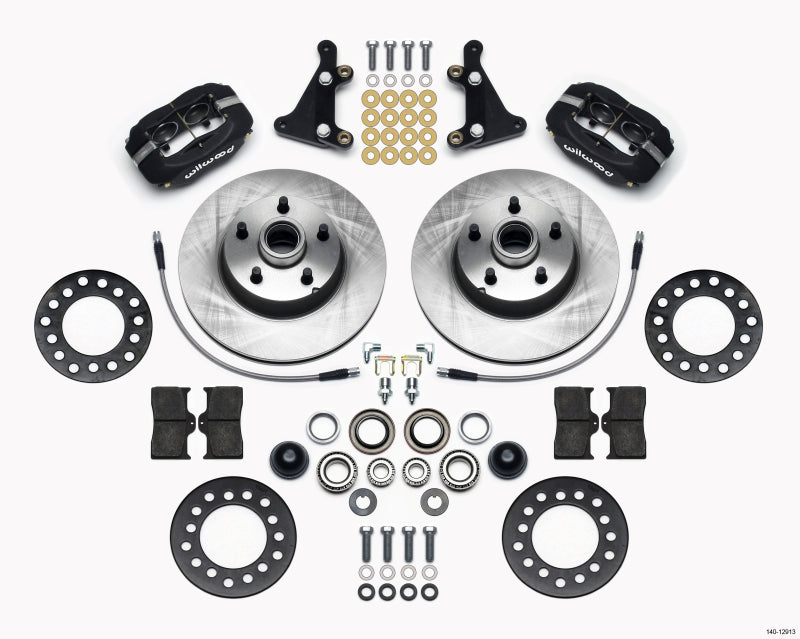

Wilwood's Classic Series front disc brake kits for Ford & select Mercury vehicles from 1949 to 1953, offer a disc brake upgrade solutions for OEM Drum spindles. A completely new kit design, featuring an 11.28" x 1.00" rotor and hub assembly. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver or the most discriminating show enthusiast. Intended vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL 1 piece kits can be used with either manual or power boost master cylinders. Kits come complete with calipers, rotors and, hub assembly, brackets, hardware and line kit.
Specifications
| Spindle Type: | Factory Drum Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 11.28 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13845-BK |
| Right Hand - Part No: | 120-13845-BK |
| Type: | Forged Dynalite Internal |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-13484 |
| Right Hand - Part No: | 160-13484 |
| Type: | 1 PC Hub and Rotor |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 11.3 |
| Width (in): | 0.94 |
| Vane Count: | Vented |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
