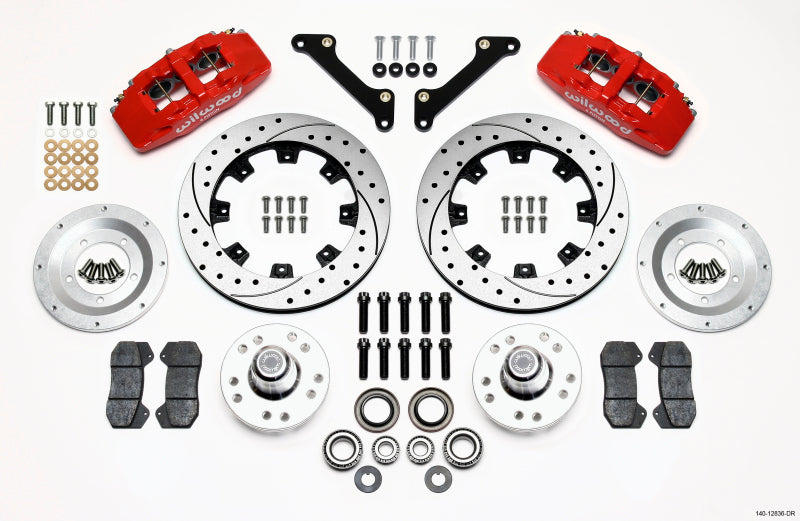

Wilwood DP6A Front Hub Kit, 12.19", Drilled, Red, 79-81 Camaro
Forged Dynapro 6 Big Brake Front Brake Kit (Hub)
DynaPro 6 forged billet calipers are combined with 12.19" diameter rotors for this group of traditional non-ABS spindles on American muscle cars and vintage rods. The enhanced brake capacity and pad performance of the six piston calipers provide an intermediate level alternative to the bigger six piston kits. These kits compliment wheel, tire, and suspension upgrades on all types of custom show and high performance street / strip machines. A full range of caliper finishes and rotor designs enable the builder to personalize the style and optimize the brake performance for each individual application.
| Kit Summary | |
|---|---|
| OE Hub Offset: | -.10 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 6 - Red Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| *This Brake Kit may fit 15-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. | |
| UPC Number | |
|---|---|
| UPC | 889545017595 |
Caution:
THIS BRAKE KIT HAS AN HUB OFFSET OF: -.10
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.
Notes:
1. Front kits fit 11" rotor spindles only.
2. Requires modifications to original spindle
3. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13429-RD |
| Right Hand - Part No: | 120-13428-RD |
| Type: | Dynapro 6 |
| Finish Color: | Red Powder Coat |
| Piston Count: | 6 |
| Piston Area (In²): | 5.06 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 6712 |
| Brake Pad Area (In²): | 7.3 |
| Brake Pad Volume (In³): | 2.4 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-7104-BK |
| Right Hand - Part No: | 160-7103-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
| Hubs | |
|---|---|
| Hub - Part No: | 270-10439 |
| Type: | Hub - Vented Rotor Offset |
| Material: | Aluminum |
| Finish Color: | Bare |
| Mount Style: | Adapter |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Bolt Circle 3: | - |
| Stud Diameter - BC 1: | 1/2-20 |
| Stud Diameter - BC 2: | 1/2-20 |
| Stud Diameter - BC 3: | - |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1984 - 1985 | Buick | Electra | Estate Wagon, Park Avenue, Limited |
| 1985 | Buick | Electra | T-Type |
| 1979 - 1983 | Buick | Estate Wagon | Base |
| 1979 - 1981 | Buick | LeSabre | Base, Sport |
| 1982 - 1985 | Buick | LeSabre | Custom |
| 1985 | Buick | LeSabre | Estate Wagon, Collector's Edition |
| 1979 - 1985 | Buick | LeSabre | Limited |
| 1982 | Buick | LeSabre | Limited Edition F/E |
| 1979 | Buick | Skylark | S, Custom, Base |
| 1979 - 1981 | Chevrolet | Camaro | Berlinetta, Z28 |
| 1979 - 1980 | Chevrolet | Camaro | Rally Sport, Base |
| 1981 | Chevrolet | Camaro | Sport |
| 1980 - 1990 | Chevrolet | Caprice | Base |
| 1979 - 1990 | Chevrolet | Caprice | Classic |
| 1986 - 1990 | Chevrolet | Caprice | Classic Brougham |
| 1981 - 1982 | Chevrolet | Caprice | Classic Estate |
| 1979 - 1981 | Chevrolet | Caprice | Classic Landau |
| 1987 - 1990 | Chevrolet | Caprice | Classic LS Brougham |
| 1979 - 1980 | Chevrolet | Caprice | Classic Sport |
| 1979 | Chevrolet | Caprice | Landau |
| 1979 - 1985 | Chevrolet | Impala | Base |
| 1981 - 1982 | Chevrolet | Impala | Estate |
| 1979 | Chevrolet | Impala | Landau |
| 1979 - 1980 | Chevrolet | Impala | Sport |
| 1979 | Chevrolet | Nova | Rally, Base, Custom |
| 1979 - 1985 | Oldsmobile | Custom Cruiser | Base |
| 1979 | Oldsmobile | Omega | Brougham LS, Base, Brougham |
| 1979 - 1981 | Pontiac | Bonneville | Safari, Brougham, Base |
| 1979 - 1981 | Pontiac | Catalina | Base, Safari |
| 1979 - 1981 | Pontiac | Firebird | Base, Esprit, Trans Am, Formula |
| 1983 - 1986 | Pontiac | Parisienne | Brougham, Base |
| 1979 | Pontiac | Phoenix | Base, LJ, SJ |
