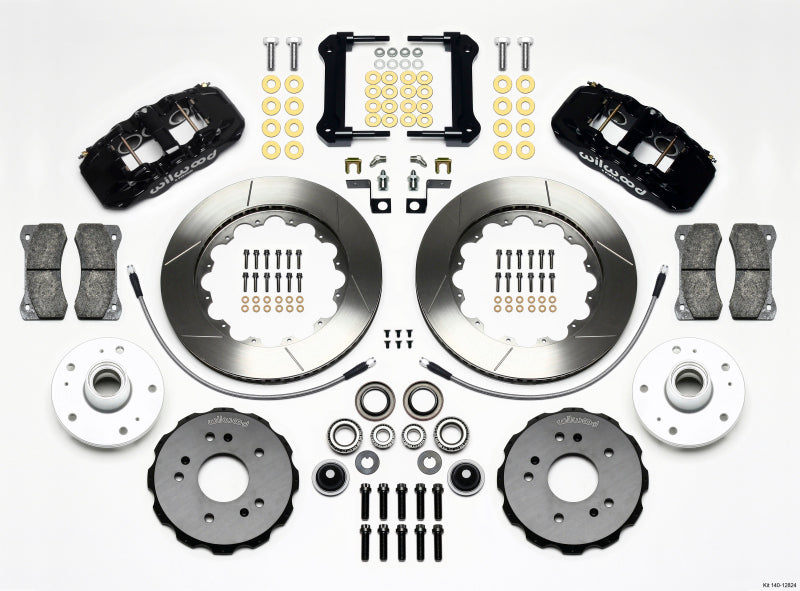

Wilwood AERO6 Big Brake Truck Front Brake Kit

SKU: 0C1Z0 | MPN:  140-12824
In stock
Sale price$3,618.13 USD

AERO6 Big Brake Truck Front Brake Kit

AERO6 calipers were designed for the specific purpose of providing big capacity braking with large diameter rotors for heavy weight and extreme duty vehicles. For cars, its the biggest of the big providing big brake performance for show and dual purpose street and track vehicles. For trucks and SUVs, it provides big stopping power for towing, off-road, and enhanced braking with wheel and tire upgrades. Kits listed for specific vehicles are fully compatible with OE master cylinder output and ABS function. Direction staggered vane 14 rotors provide maximum cooling for sustained high heat durability.

Specifications

Spindle Type: Factory Disc Spindle

Mount Type: Radial

Caliper Type: 6 - Black Powder Coat

Rotor Diameter: 14.25

Min Wheel Diameter Req'd*: 18



Calipers

Left Hand - Part No: 120-13294-BK

Right Hand - Part No: 120-13293-BK

Type: AERO6

Finish Color: Black Powder Coat

Piston Count: 6

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.38

Piston 3 Bore (in): 1.38

Piston Area (In²): 5.40

Piston Type: Stainless

Mount Type: Radial

Brake Pad Plate: 6617

Brake Pad Area (In²): 11.1

Brake Pad Volume (In³): 5.2

Pad Compound: BP-20



Rotors

Left Hand - Part No: 160-11316

Right Hand - Part No: 160-11315

Type: GT 72 Curved Vane

Style: GT Slotted

Surface Finish: Plain

Material: Spec-37 Iron

Outside Diameter (in): 14.25

Width (in): 1.25

Vane Count: 72 CV

Design Type: GT

Bedded: No

Dynamically Balanced: Yes



Rotor Hats

Hat - Part No: 170-12829

Type: Big Brake Hat - Flared Bell

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 0.53

Bolt Circle 1: 5 x 5.32

Stud Diameter - BC 1: 0.52

Stud Diameter - BC 2: 0

Stud Diameter - BC 3: 0



Hubs

Hub - Part No: 270-12825

Type: Truck

Material: Aluminum

Finish Color: Bare

Mount Style: Hat

Bolt Circle 1: 5 x 5.32

Stud Diameter - BC 1: 1/2-20



Vehicle Fitments:

Year Make Model Submodel
1998 - 1999 Ford F-150 Austera
1997 - 2000 Ford F-150 Base
2000 - 2003 Ford F-150 Harley-Davidson Edition
2001 - 2003 Ford F-150 King Ranch
1997 - 2003 Ford F-150 Lariat, XLT, XL
1999 - 2003 Ford F-150 Lightning
2004 Ford F-150 Heritage XL, XLT, SVT Lightning
