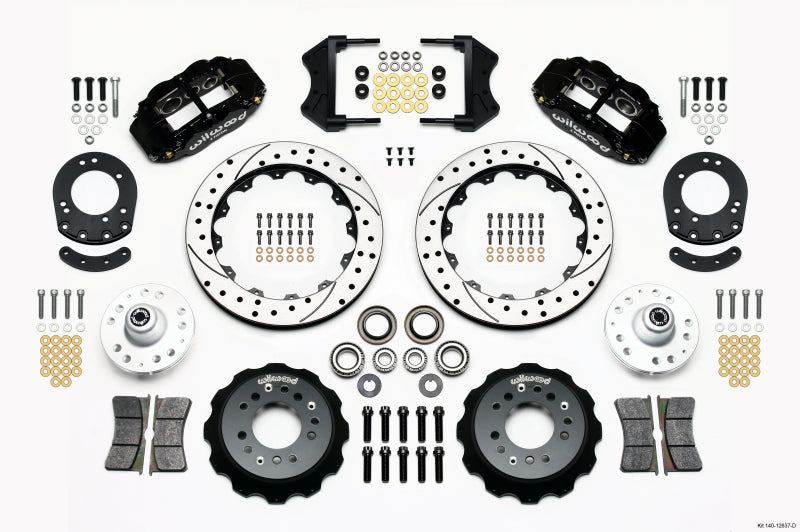

Wilwood FNSL6R Front Hub Kit,12.88",Drilled,1965-1969 Mustang Drum Spindle *Discontinued
Wilwood FNSL6R Front Hub Kit,12.88",Drilled,1965-1969 Mustang Drum Spindle *Discontinued
17 in stock
Emissions
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Front Brake Kit
Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Specifications
| OE Hub Offset: | +.25 |
| Spindle Type: | Factory Drum SpindleFactory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 6 - Black Powder Coat |
| Rotor Diameter: | 12.88 |
| Min Wheel Diameter Req'd*: | 17 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-11781-BK |
| Right Hand - Part No: | 120-11780-BK |
| Type: | Forged Narrow Superlite 6R |
| Finish Color: | Black Powder Coat |
| Piston Count: | 6 |
| Piston Area (In²): | 4.04 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7416 |
| Brake Pad Area (In²): | 8.2 |
| Brake Pad Volume (In³): | 3.8 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-13544-BK |
| Right Hand - Part No: | 160-13543-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Spec-37 Iron |
| Outside Diameter (in): | 12.88 |
| Width (in): | 1.1 |
| Vane Count: | 48 CV |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-10489 |
| Type: | Big Brake Hat - Flared Bell |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 1.62 |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Stud Diameter - BC 1: | 0.52 |
| Stud Diameter - BC 2: | 0.52 |
| Stud Diameter - BC 3: | 0 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1965 - 1969 | Ford | Mustang | Base, Shelby GT-350 |
| 1969 | Ford | Mustang | Boss 302, Boss 429 |
| 1966 | Ford | Mustang | Shelby GT-350H |
| 1967 - 1969 | Ford | Mustang | Shelby GT-500 |
| 1968 | Ford | Mustang | Shelby GT-500KR |
| 1967 - 1969 | Ford | Ranchero | 500 |
| 1967 | Ford | Ranchero | 500 XL |
| 1964 - 1969 | Ford | Ranchero | Base |
| 1966 | Ford | Ranchero | Custom |
| 1968 - 1969 | Ford | Ranchero | GT |
| 1968 - 1969 | Ford | Torino | GT, Base |
| 1969 | Ford | Torino | Squire, Cobra |
| 1964 - 1965 | Mercury | Comet | 404, 202 |
| 1964 - 1969 | Mercury | Comet | Base |
| 1969 | Mercury | Cougar | Cobra Jet, Boss 429, Boss 302 |
| 1967 - 1969 | Mercury | Cougar | XR-7, Base |
| 1968 - 1969 | Mercury | Montego | Base, MX |
