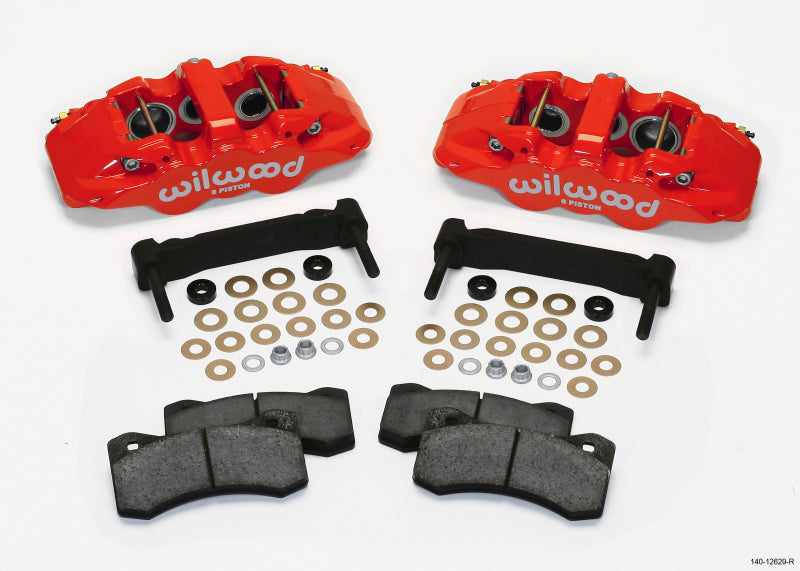

Wilwood AERO6 Front Caliper & Bracket Kit - Red, 97-13 C5/C6 Corvette w/ OEM H
AERO6 Front Caliper and Bracket Upgrade Kit for Corvette C5-C6
Aerolite 6R six piston radial mount front caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette front suspension. These kits replace the OE calipers on all models and mount in the stock caliper location. All the necessary hardware is included for correct mounting height and offset with the very affordable one-piece 13.38" Z51 style rotors. Aerolite 6R calipers incorporate race proven technology in a high strength forged triple bridge body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.
| Kit Summary | |
|---|---|
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 6 - Red Powder Coat |
| Rotor Diameter: | |
| Min Wheel Diameter Req'd*: | 18 |
| *This Brake Kit may fit 18-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. | |
| UPC Number | |
|---|---|
| UPC | 889545017175 |
Caution: THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.
NOTES:
1. Requires 2005-13 J55 code Z51/J56 code 13.38"diameter rotors or aftermarket equivalent.
2. Use flexline kit 220-8176 for all 1997-04 C5
3. Use flexline kit 220-9100 for all 2005-13 C6
Kit Components & Specifications
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13290-RD |
| Right Hand - Part No: | 120-13289-RD |
| Type: | AERO6 |
| Finish Color: | Red Powder Coat |
| Piston Count: | 6 |
| Piston Area (In²): | 4.04 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 6617 |
| Brake Pad Area (In²): | 11.1 |
| Brake Pad Volume (In³): | 5.2 |
| Pad Compound: | BP-20 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2008 | Chevrolet | Corvette | 427 Limited Edition Z06 |
| 2003 | Chevrolet | Corvette | 50th Anniversary Edition, 50th Anniversary Edition Pace Car |
| 1997 - 2013 | Chevrolet | Corvette | Base |
| 2010 - 2013 | Chevrolet | Corvette | Grand Sport |
| 1998 | Chevrolet | Corvette | Indianapolis 500 Pace Car |
| 2013 | Chevrolet | Corvette | LT, 427 |
| 2001 - 2013 | Chevrolet | Corvette | Z06 |
| 2011 | Chevrolet | Corvette | Z06 Carbon |
| 2009 - 2013 | Chevrolet | Corvette | ZR1 |
