Wilwood FNSL4R Front Kit, 12.19", Drilled, Red, 82-86 Jeep CJ *Discontinued
Wilwood FNSL4R Front Kit, 12.19", Drilled, Red, 82-86 Jeep CJ *Discontinued
Out of stock
Emissions
Couldn't load pickup availability
- Ships Worldwide
- Easy Returns
- Fast Shipping
Front Brake Kit

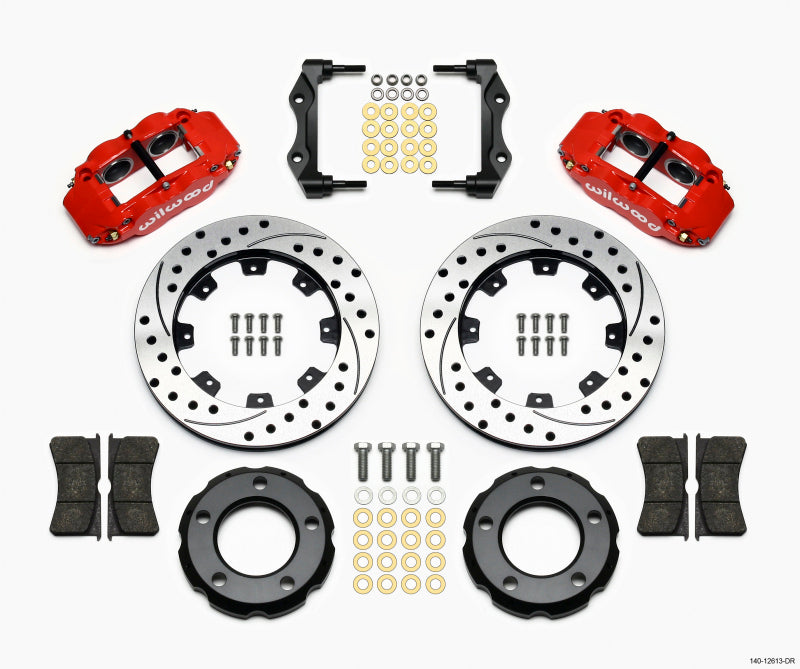

Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)
The unsurpassed braking capacity of the Forged Narrow Superlite 4R four-piston caliper serves as the base of this 12.19" big rotor kit for the popular Jeep CJ vehicles, Kit fitment starts with 1981 models originally equipped with 5 bolt drive flange rotors and fitment continues to all 82-86 year vehicles. SL4R kits are engineered application specific to these vehicles, providing simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits offer increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Specifications
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 16 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-11784-RD |
| Right Hand - Part No: | 120-11784-RD |
| Type: | Forged Narrow Superlite 4R |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7416 |
| Brake Pad Area (In²): | 8.2 |
| Brake Pad Volume (In³): | 3.8 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-12205-BK |
| Right Hand - Part No: | 160-12204-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 1.1 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Rotor Hats | |
|---|---|
| Hat - Part No: | 170-12612 |
| Type: | Drag Hat - Shallow Offset |
| Material: | Aluminum |
| Finish Color: | Black E-Coat |
| Hat Offset Dimension (in): | 0.81 |
| Bolt Circle 1: | 5 x 5.50 |
| Stud Diameter - BC 1: | 0.67 |
| Stud Diameter - BC 2: | 0 |
| Stud Diameter - BC 3: | 0 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1982 - 1983 | Jeep | CJ5 | Renegade, Base, Laredo, Limited |
| 1982 - 1986 | Jeep | CJ7 | Laredo, Base, Renegade |
| 1982 - 1984 | Jeep | CJ7 | Limited |
| 1983 - 1984 | Jeep | CJ7 | Renegado |
