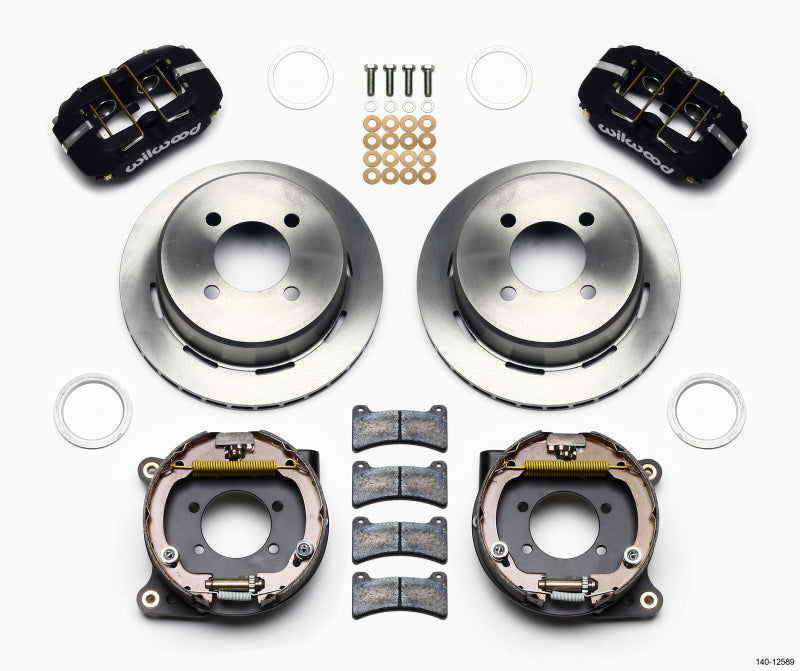

Wilwood FDP-LP 11.00" P-Brake Kit, Ford 7.5" Rear, 2.80 Offset - 4-Lug
Rear Brake Kit - Rear Kit
Dynapro Low-Profile Rear Parking Brake Kit
Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00" to 15.00" rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00" one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Specifications
| Kit Summary | |
|---|---|
| Rear End Axle: | 7.25 Mustang |
| Axle Offset: | 2.8 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 11 |
| Min Wheel Diameter Req'd*: | 14 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-12160-BK |
| Right Hand - Part No: | 120-12160-BK |
| Type: | Forged Dynapro Low Profile |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 1.98 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 4812 |
| Brake Pad Area (In²): | 5.1 |
| Brake Pad Volume (In³): | 1.71 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-12594 |
| Right Hand - Part No: | 160-12594 |
| Type: | Ultralite HP 32 & Hat |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 11 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1964 - 1966 | Ford | Mustang | Base |
| 1965 - 1966 | Ford | Mustang | Shelby GT-350 |
| 1966 | Ford | Mustang | Shelby GT-350H |
| 1964 - 1965 | Ford | Ranchero | Base |
| 1964 - 1965 | Mercury | Comet | 202, 404 |
| 1964 - 1966 | Mercury | Comet | Base |
