Front Brake Kit

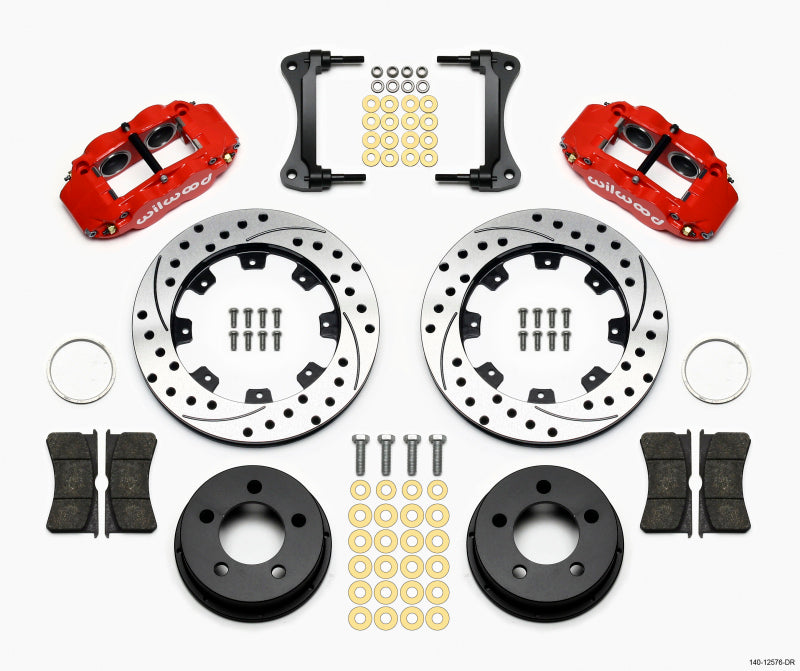

Forged Narrow Superlite 4R Big Brake Front Brake Kit (Hat)
The unsurpassed braking capacity of the Forged Narrow Superlite 4R four-piston caliper serves as the base of this 12.19" big rotor kit for these popular 84-89 Jeep YJ model vehicles (including Cherokee, Comanche, Wrangler and Wagoneer). Kits also can be fitted to select 1990 to 2006 YJ & TJ vehicles if retrofitted to the earlier 84-89 YJ spindle. SL4 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.
Specifications
| Spindle Type: |
Factory Disc Spindle |
| Mount Type: |
Radial |
| Caliper Type: |
6 - Red Powder Coat |
| Rotor Diameter: |
12.19 |
| Min Wheel Diameter Req'd*: |
16 |
| Calipers |
|---|
| Left Hand - Part No: |
120-11784-RD |
| Right Hand - Part No: |
120-11784-RD |
| Type: |
Forged Narrow Superlite 4R |
| Finish Color: |
Red Powder Coat |
| Piston Count: |
4 |
| Piston Area (In²): |
4.80 |
| Piston Type: |
Stainless |
| Mount Type: |
Radial |
| Brake Pad Plate: |
7416 |
| Brake Pad Area (In²): |
8.2 |
| Brake Pad Volume (In³): |
3.8 |
| Pad Compound: |
BP-10 |
| Rotors |
|---|
| Left Hand - Part No: |
160-12205-BK |
| Right Hand - Part No: |
160-12204-BK |
| Type: |
SRP Drilled Rotor |
| Style: |
SRP Drilled & Slotted |
| Surface Finish: |
Black Electro Coat |
| Material: |
Iron |
| Outside Diameter (in): |
12.19 |
| Width (in): |
1.1 |
| Vane Count: |
32 V |
| Design Type: |
SRP-BLK |
| Bedded: |
No |
| Dynamically Balanced: |
Yes |
| Rotor Hats |
|---|
| Hat - Part No: |
170-12575 |
| Type: |
Drag Hat - Standard |
| Material: |
Aluminum |
| Finish Color: |
Black E-Coat |
| Hat Offset Dimension (in): |
1.68 |
| Bolt Circle 1: |
5 X 4.50 |
| Stud Diameter - BC 1: |
0.63 |
| Stud Diameter - BC 2: |
0 |
| Stud Diameter - BC 3: |
0 |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 1984 - 1994 |
Jeep |
Cherokee |
Base |
| 1991 - 1992 |
Jeep |
Cherokee |
Briarwood |
| 1985 - 1988 |
Jeep |
Cherokee |
Chief |
| 1996 - 2001 |
Jeep |
Cherokee |
Classic |
| 1993 - 1997 |
Jeep |
Cherokee |
Country |
| 1985 - 1992 |
Jeep |
Cherokee |
Laredo |
| 1987 - 2001 |
Jeep |
Cherokee |
Limited |
| 1985 - 1990 |
Jeep |
Cherokee |
Pioneer |
| 1994 - 2001 |
Jeep |
Cherokee |
SE |
| 1989 - 2001 |
Jeep |
Cherokee |
Sport |
| 1987 - 1992 |
Jeep |
Comanche |
Base, Pioneer |
| 1986 |
Jeep |
Comanche |
Custom, X, XLS |
| 1988 - 1992 |
Jeep |
Comanche |
Eliminator |
| 1987 - 1988 |
Jeep |
Comanche |
Laredo, Chief |
| 1993 |
Jeep |
Grand Cherokee |
Base |
| 1993 - 1994 |
Jeep |
Grand Cherokee |
SE, Laredo, Limited |
| 1993 |
Jeep |
Grand Wagoneer |
Base |
| 1984 |
Jeep |
Wagoneer |
Alpina |
| 1984 - 1987 |
Jeep |
Wagoneer |
Base |
| 1984 - 1990 |
Jeep |
Wagoneer |
Limited |
| 2001 |
Jeep |
Wrangler |
60 Aniversario |
| 1987 - 1997 |
Jeep |
Wrangler |
Base |
| 1988 - 1992 |
Jeep |
Wrangler |
Islander |
| 1987 - 1990 |
Jeep |
Wrangler |
Laredo |
| 1991 - 1994 |
Jeep |
Wrangler |
Renegade |
| 1995 |
Jeep |
Wrangler |
Rio Grande |
| 2003 - 2006 |
Jeep |
Wrangler |
Rubicon |
| 1988 - 1994 |
Jeep |
Wrangler |
S |
| 1988 - 2004 |
Jeep |
Wrangler |
Sahara |
| 1994 - 2006 |
Jeep |
Wrangler |
SE |
| 1987 - 2006 |
Jeep |
Wrangler |
Sport |
| 2004 - 2006 |
Jeep |
Wrangler |
Unlimited |
| 2005 - 2006 |
Jeep |
Wrangler |
Unlimited Rubicon |
| 2002 - 2006 |
Jeep |
Wrangler |
X |
| 2006 |
Jeep |
Wrangler |
X 65 Aniversario, 65th Anniversary Edition |
| 2003 |
Jeep |
Wrangler |
X AT |
