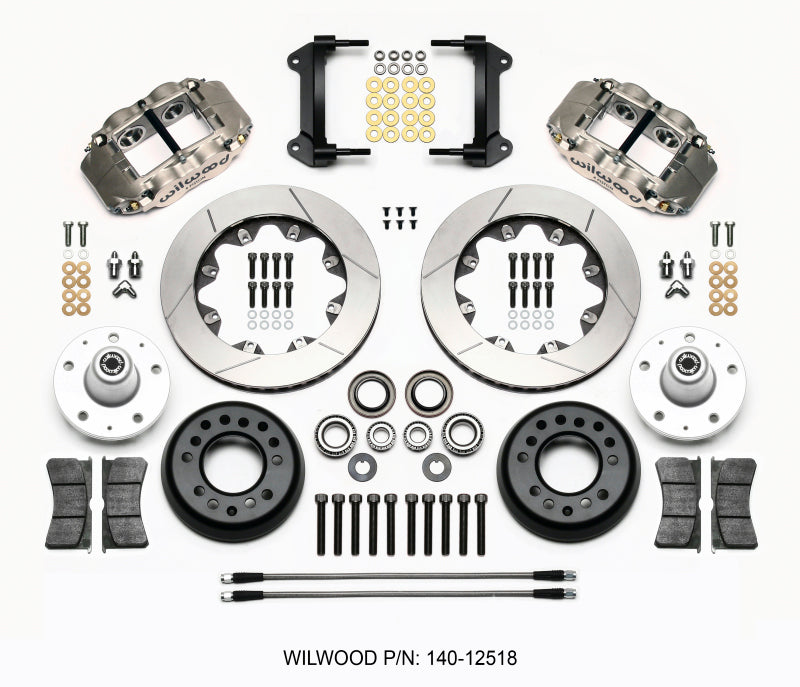

Wilwood SL4R/ST BB Front Kit,Road Race 82-92 Camaro

Forged Superlite 4R Big Brake Front Brake Kit (Race)

This kit is configured for dedicated road racing on all 1982-92 Camaros and Firebirds using the OE factory single piston caliper spindles that have been modified to accept the Wilwood caliper brackets. Four piston, nickel finish Quick-Silver FSL4R/ST calipers, with Thermlock® pistons and internal knock-back damping springs, are volume matched for system compatibility with either a factory power brake booster and master cylinder, or a manual balance bar style pedal with appropriately sized master cylinders. The kit includes two-piece 12.19 diameter Spec 37 alloy GT series directional vane rotors to comply with SCCA American Sedan rules, cross-overs into the NASA pony car categories, or any other sanction racing with racing with 16 or 17 wheels. Unsprung and rotating weight are minimized by using forged aluminum hats to mount the rotors to the forged aluminum hubs supplied with the kit. The kit also includes high-temp Wilwood race compound pads, machined billet radial mount caliper brackets, stainless steel braided flexlines, extra length wheel studs, hub bearings, grease seals, and all premium grade hardware. Detailed instructions illustrating the required spindle modifications can be found on page 2 of the assembly instructions.

Specifications

Spindle Type: Factory Disc Spindle

Mount Type: Radial

Caliper Type: 4 - Type III Ano

Rotor Diameter: 12.19

Min Wheel Diameter Req'd*: 15

Calipers

Left Hand - Part No: 120-13266

Right Hand - Part No: 120-13265

Type: Forged Superlite 4R

Finish Color: Type III Ano

Piston Count: 4

Piston 1 Bore (in): 1.88

Piston 2 Bore (in): 1.62

Piston Area (In²): 4.84

Piston Type: Thermlock

Mount Type: Radial

Brake Pad Plate: 7420

Brake Pad Area (In²): 8.2

Brake Pad Volume (In³): 4.9

Pad Compound: BP-30

Rotors

Left Hand - Part No: 160-11840

Right Hand - Part No: 160-11839

Type: GT 48 Curved Vane

Style: GT Slotted

Surface Finish: Plain

Material: Spec-37 Iron

Outside Diameter (in): 12.19

Width (in): 1.25

Vane Count: 48 CV

Design Type: GT

Bedded: No

Dynamically Balanced: Yes

Rotor Hats

Hat - Part No: 170-7632

Type: Big Brake Hat - Short Offset

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 1.43

Bolt Circle 1: 5 x 4.50

Bolt Circle 2: 5 x 4.75

Stud Diameter - BC 1: 0.52

Stud Diameter - BC 2: 0.52

Stud Diameter - BC 3: 0
