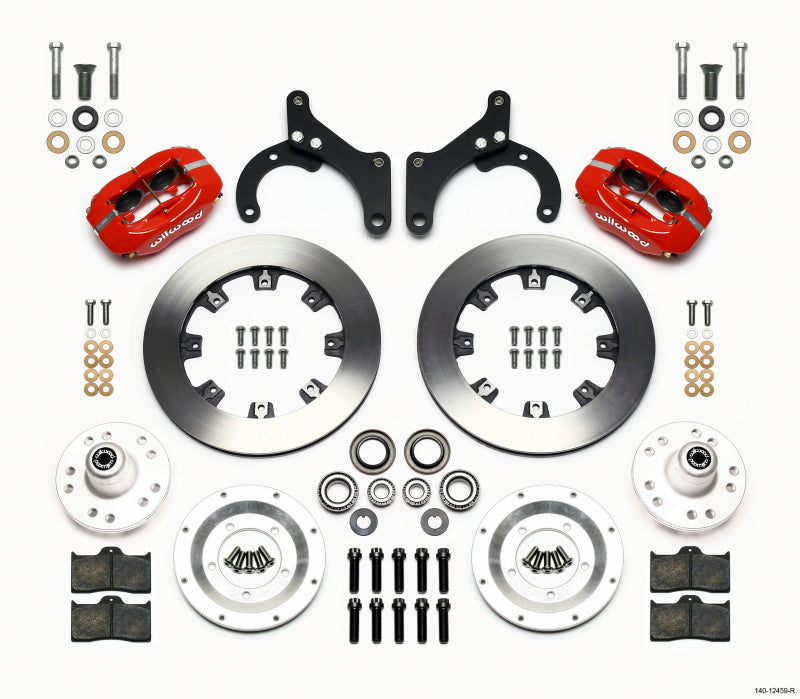

Wilwood FDL Front Kit,12.19",Red 59-64 Chevy Impala/63-64 Corvette

Forged Dynalite Big Brake Front Brake Kit (Hub)

FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19 diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.

Specifications

OE Hub Offset: +.27

Spindle Type: Factory Drum Spindle

Mount Type: Lug

Caliper Type: 4 - Red Powder Coat

Rotor Diameter: 12.19

Min Wheel Diameter Req'd*: 15

Calipers

Left Hand - Part No: 120-13844-RD

Right Hand - Part No: 120-13844-RD

Type: Forged Dynalite Internal

Finish Color: Red Powder Coat

Piston Count: 4

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.75

Piston Area (In²): 4.80

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 7112

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-5843

Right Hand - Part No: 160-5843

Type: Ultralite HP 32

Style: Plain Face

Surface Finish: Plain

Material: Iron

Outside Diameter (in): 12.19

Width (in): 0.81

Vane Count: 32 V

Design Type: ULHP

Bedded: No

Dynamically Balanced: No

Hubs

Hub - Part No: 270-11032

Type: Hub - Vented Rotor Offset

Material: Aluminum

Finish Color: Bare

Mount Style: Adapter

Bolt Circle 1: 5 x 4.50

Bolt Circle 2: 5 x 4.75

Stud Diameter - BC 1: 1/2-20

Stud Diameter - BC 2: 1/2-20

Vehicle Fitments:
