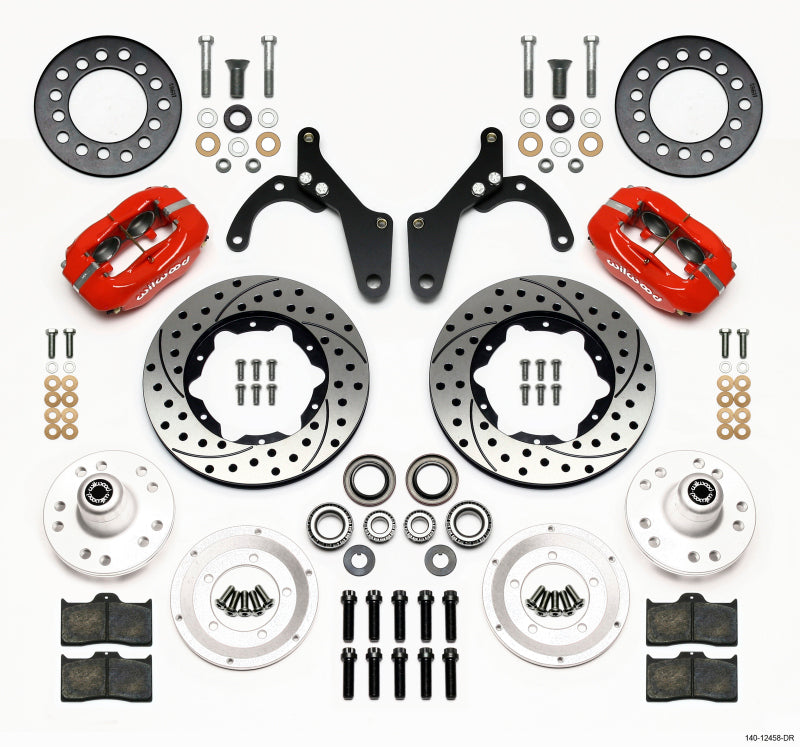

Wilwood FDL Front Kit,11.00", Drill-Red 59-64 Chevy Impala / 63-64 Corvette

Forged Dynalite Pro Series Front Brake Kit

FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15 wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Kit Summary

OE Hub Offset: +.27

(Increase / Decrease Track Width)

Spindle Type: Factory Drum Spindle
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11
Min Wheel Diameter Req'd*: 14

Kit Components & Specifications

Calipers

Left Hand - Part No: 120-13844-RD
Right Hand - Part No: 120-13844-RD
Type: Forged Dynalite Internal
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore(in): 1.75
Piston 2 Bore(in): 1.75
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 7112
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-7100-BK
Right Hand - Part No: 160-7099-BK
Type: SRP Drilled Rotor
Style: SRP Drilled & Slotted
Surface Finish: Black Electro Coat
Material: Iron
Outside Diameter (in): 11
Width (in): 0.81
Vane Count: 30 V
Design Type: SRP-BLK
Bedded: No
Dynamically Balanced: No

Hubs

Hub - Part No: 270-11032
Type: Hub - Vented Rotor Offset
Material: Aluminum
Finish Color: Bare
Mount Style: Adapter
Bolt Circle 1: 5 x 4.50
Bolt Circle 2: 5 x 4.75
Stud Diameter - BC 1: 1/2-20
Stud Diameter - BC 2: 1/2-20

Applications

Chevrolet Bel Air 1959-1964 All
Chevrolet Biscayne 1959-1964 All
Chevrolet Brookwood 1959-1961 All
Chevrolet Corvette 1963-1964 C-2
Chevrolet El Camino 1959-1960 All
Chevrolet Impala 1959-1964 All
Chevrolet Kingswood 1959-1961 Base
Chevrolet Nomad 1959-1961 All
Chevrolet Parkwood 1959-1961 Base
Chevrolet Sedan Delivery 1959-1960 All
