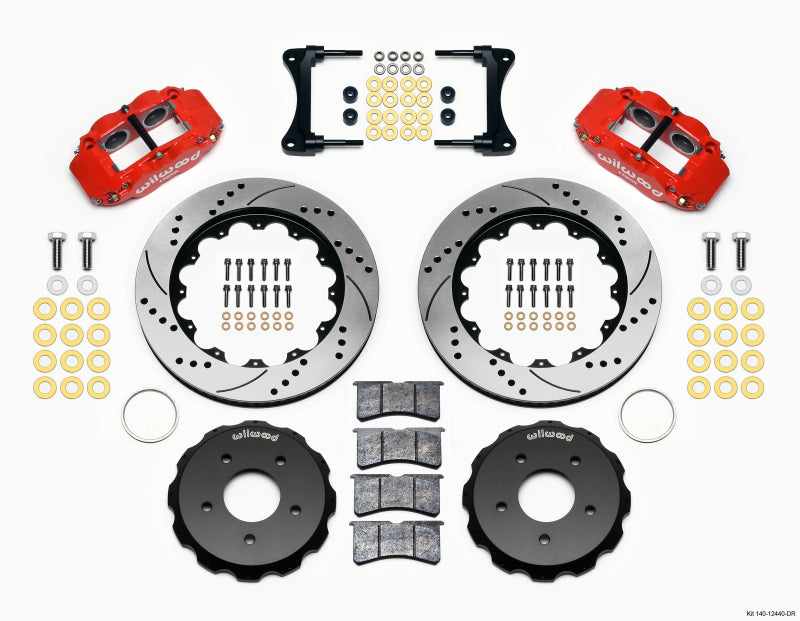

Wilwood FNSL4R Front Hat Kit, 14.00", Drill, Red, 2007-Up Jeep Wrangler

Front Brake Kit - 140-12440-DR

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narow Superlite 6R four-piston caliper serves as the base of this 14" big rotor kit for these popular 2007-up Jeep JK or Wrangler model vehicles. FNSL6 kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Caution
	THIS BRAKE KIT HAS AN HUB OFFSET OF:  This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the Installation Instructions below to verify you have adequate wheel clearance for this kit.

Calipers
Left Hand - Part No:	120-14551-RD
Right Hand - Part No:	120-14550-RD
Type:	Forged Narrow Superlite 6R
Finish Color:	Red Powder Coat
Piston Count:	6
Piston Area (In²):	4.86
Piston Type:	Stainless
Mount Type:	Radial
Brake Pad Plate:	7416
Brake Pad Area (In²):	8.2
Brake Pad Volume (In³):	3.8
Pad Compound:	BP-10

Rotors
Left Hand - Part No:	160-8397-BK
Right Hand - Part No:	160-8396-BK
Type:	SRP Drilled Rotor
Style:	SRP Drilled & Slotted
Surface Finish:	Black Electro Coat
Material:	Spec-37 Iron
Outside Diameter (in):	14
Width (in):	1.25
Vane Count:	72 CV
Design Type:	SRP-BLK
Bedded:	No
Dynamically Balanced:	Yes

Rotor Hats
Hat - Part No:	170-12399
Type:	Big Brake Hat - Flared Bell
Material:	Aluminum
Finish Color:	Black E-Coat
Hat Offset Dimension (in):	0.85
Bolt Circle 1:	5 x 5.00
Bolt Circle 2:
Bolt Circle 3:
Stud Diameter - BC 1:	0.52
Stud Diameter - BC 2:	0
Stud Diameter - BC 3:	0

Vehicle Fitments:
