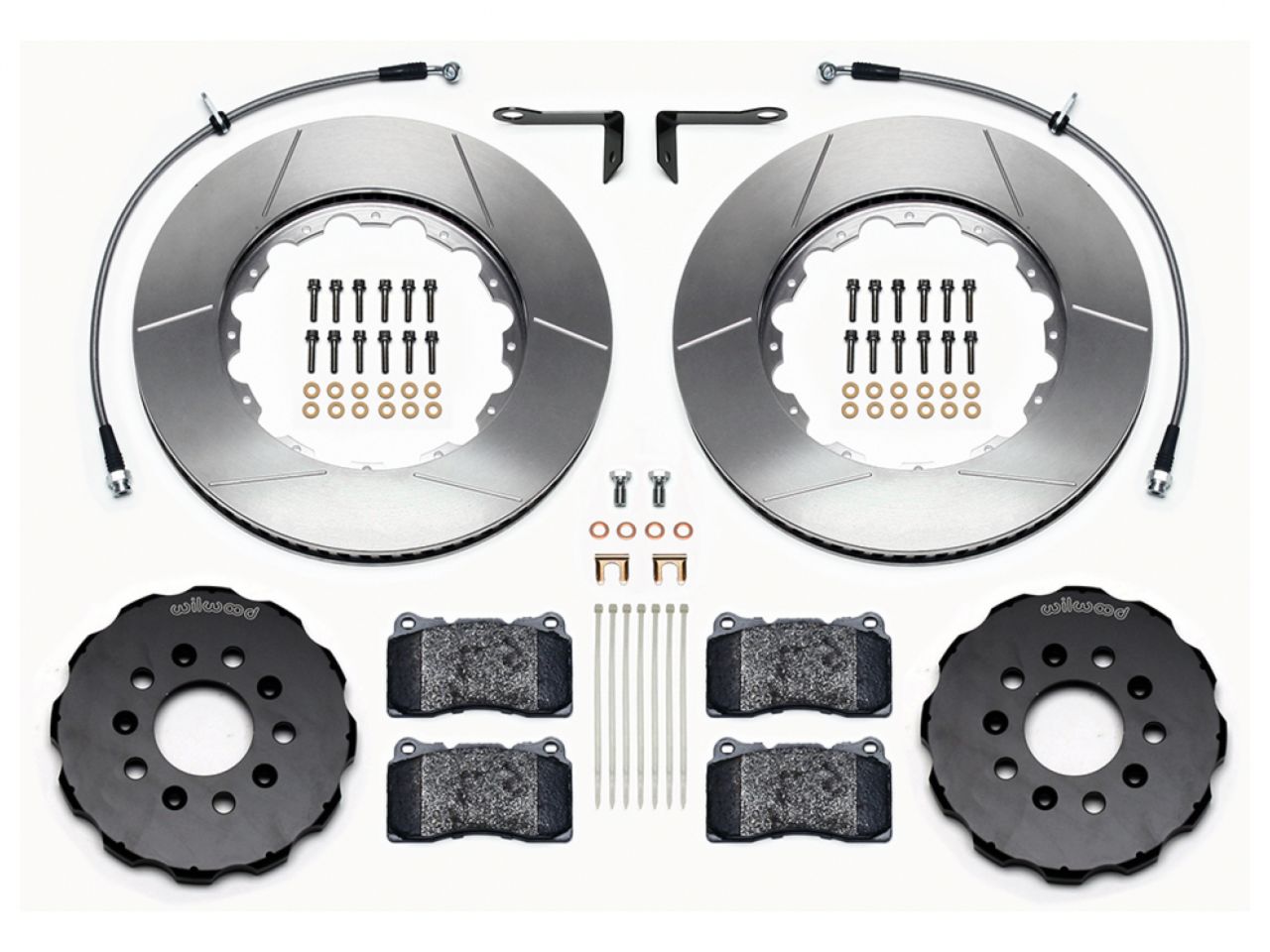

Wilwood Pro-Matrix Front Kit,GT 05-12 Mustang GT500 (2Pc Hat/Rtr)

Promatrix Front Replacement Rotor Kit

ProMatrix pad, rotor, and flexline upgrade kits offer measurable brake performance improvements to racers and enthusiasts using the OE factory brake calipers. High performance pad compounds are specially selected to provide increased brake response and higher resistance against fade. A choice of two-piece directional vane GT rotor kits provide high temperature durability for the track or SRP drilled and slotted black e-coat rotor kits that provide high-tech style with corrosion resistance for the street. Stainless steel braided flexlines add style, durability, and firmer response with reduced deflection under load.

Specifications

Spindle Type: Factory Disc Spindle

Caliper Type: 0 - No Calipers Included

Rotor Diameter: 14.00

Min Wheel Diameter Req'd*: 18



Calipers

Brake Pad Plate: D1001

Pad Compound: PM - ProMatrix



Rotors

Left Hand - Part No: 160-12392

Right Hand - Part No: 160-12391

Type: GT 48 Curved Vane

Style: GT Slotted

Surface Finish: Plain

Material: Spec-37 Iron

Outside Diameter (in): 14.00

Width (in): 1.25

Vane Count: 72 CV

Design Type: GT

Bedded: No

Dynamically Balanced: Yes



Rotor Hats

Hat - Part No: 170-12339

Type: Big Brake Hat - Short Offset

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 0.260

Bolt Circle 1: 5 x 4.50

Stud Diameter - BC 1: 0.580

Stud Diameter - BC 2: 0.000

Stud Diameter - BC 3: 0.000
