Front Brake Kit

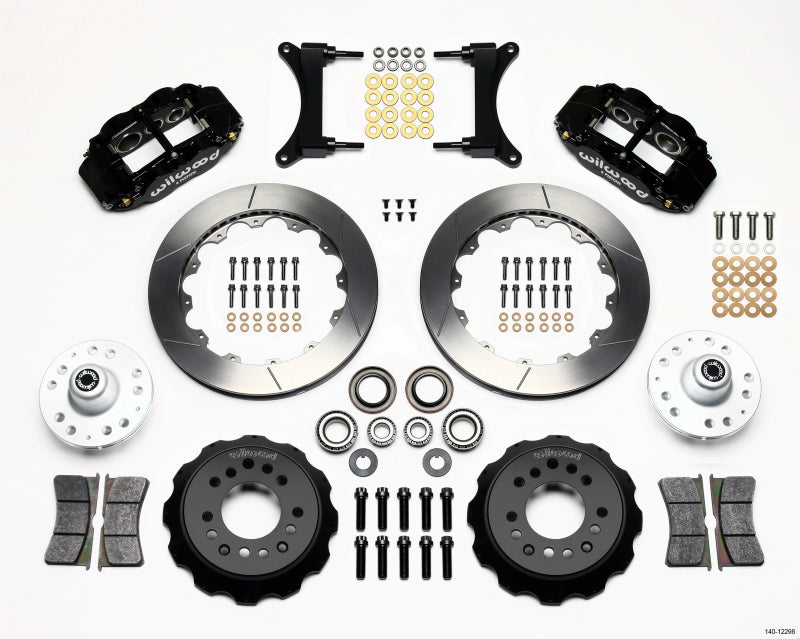

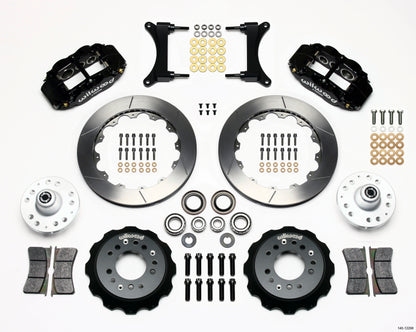

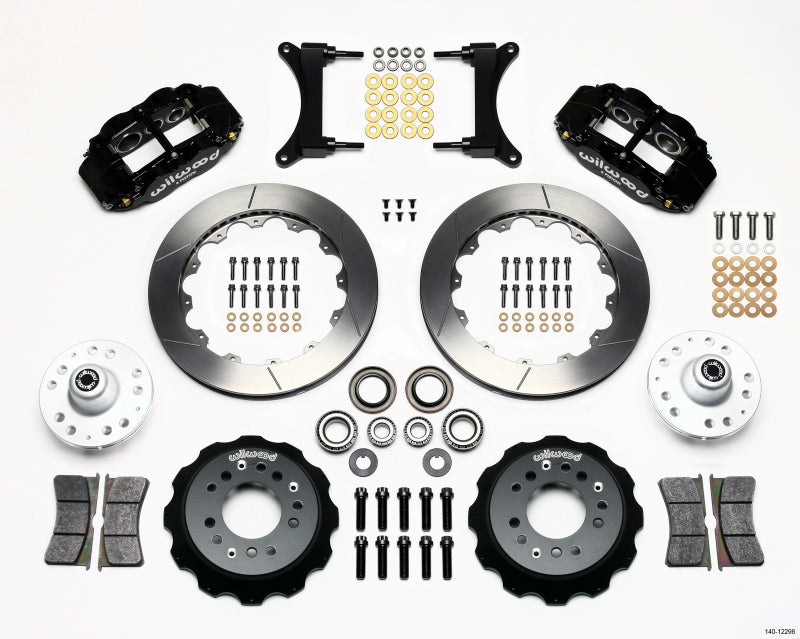

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub)
FNSL6R billet Forged six-piston calipers with 13"-14" rotors deliver the ultimate combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, SL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Specifications
| OE Hub Offset: |
+.10 |
| Spindle Type: |
Factory Disc Spindle |
| Mount Type: |
Radial |
| Caliper Type: |
6 - Black Powder Coat |
| Rotor Diameter: |
12.88 |
| Min Wheel Diameter Req'd*: |
17 |
| Calipers |
|---|
| Left Hand - Part No: |
120-11781-BK |
| Right Hand - Part No: |
120-11780-BK |
| Type: |
Forged Narrow Superlite 6R |
| Finish Color: |
Black Powder Coat |
| Piston Count: |
6 |
| Piston Area (In²): |
4.04 |
| Piston Type: |
Stainless |
| Mount Type: |
Radial |
| Brake Pad Plate: |
7416 |
| Brake Pad Area (In²): |
8.2 |
| Brake Pad Volume (In³): |
3.8 |
| Rotors |
|---|
| Left Hand - Part No: |
160-12962 |
| Right Hand - Part No: |
160-12961 |
| Type: |
GT 48 Curved Vane |
| Style: |
GT Slotted |
| Surface Finish: |
Plain |
| Material: |
Spec-37 Iron |
| Outside Diameter (in): |
12.88 |
| Width (in): |
1.1 |
| Vane Count: |
48 CV |
| Design Type: |
GT |
| Bedded: |
No |
| Dynamically Balanced: |
Yes |
| Rotor Hats |
|---|
| Hat - Part No: |
170-11965 |
| Type: |
Big Brake Hat - Flared Bell |
| Material: |
Aluminum |
| Finish Color: |
Black E-Coat |
| Hat Offset Dimension (in): |
1.38 |
| Bolt Circle 1: |
5 X 4.50 |
| Bolt Circle 2: |
5 X 4.75 |
| Stud Diameter - BC 1: |
0.52 |
| Stud Diameter - BC 2: |
0.52 |
| Stud Diameter - BC 3: |
0 |
| Hubs |
|---|
| Hub - Part No: |
270-12304 |
| Type: |
Hub - Hat Mount |
| Material: |
Aluminum |
| Finish Color: |
Bare |
| Mount Style: |
Hat |
| Bolt Circle 1: |
5 x 4.50 |
| Bolt Circle 2: |
5 x 4.75 |
| Stud Diameter - BC 1: |
1/2-20 |
| Stud Diameter - BC 2: |
1/2-20 |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 1980 - 1981 |
Buick |
Century |
Estate, Base |
| 1979 - 1981 |
Buick |
Century |
Limited, Sport |
| 1979 |
Buick |
Century |
Special, Custom |
| 1982 - 1983 |
Buick |
Regal |
Estate Wagon |
| 1987 |
Buick |
Regal |
GNX |
| 1984 - 1987 |
Buick |
Regal |
Grand National |
| 1982 |
Buick |
Regal |
Limited Turbo |
| 1979 - 1987 |
Buick |
Regal |
Limited, Base |
| 1979 - 1982 |
Buick |
Regal |
Sport |
| 1983 - 1986 |
Buick |
Regal |
T-Type |
| 1995 - 1997 |
Chevrolet |
Blazer |
Base, LT, Deluxe |
| 1996 - 1997 |
Chevrolet |
Blazer |
LS |
| 1979 - 1987 |
Chevrolet |
El Camino |
Base, SS |
| 1981 - 1986 |
Chevrolet |
El Camino |
Conquista |
| 1979 - 1981 |
Chevrolet |
El Camino |
Royal Knight |
| 1979 - 1981 |
Chevrolet |
Malibu |
Base, Classic Landau |
| 1979 - 1983 |
Chevrolet |
Malibu |
Classic |
| 1979 - 1980 |
Chevrolet |
Malibu |
Estate, Classic Sport, Classic Estate, Sport |
| 1979 |
Chevrolet |
Malibu |
Police, Landau |
| 1979 - 1988 |
Chevrolet |
Monte Carlo |
Base |
| 1983 |
Chevrolet |
Monte Carlo |
CL |
| 1979 - 1981 |
Chevrolet |
Monte Carlo |
Landau |
| 1986 - 1988 |
Chevrolet |
Monte Carlo |
LS |
| 1980 |
Chevrolet |
Monte Carlo |
Sport |
| 1983 - 1988 |
Chevrolet |
Monte Carlo |
SS |
| 1991 |
Chevrolet |
S10 |
Baja |
| 1982 - 2002 |
Chevrolet |
S10 |
Base |
| 1982 - 1990 |
Chevrolet |
S10 |
Durango |
| 1992 - 1993 |
Chevrolet |
S10 |
EL |
| 1994 - 2002 |
Chevrolet |
S10 |
LS, ZR2 |
| 1991 - 1993 |
Chevrolet |
S10 |
Maxi |
| 1982 - 1989 |
Chevrolet |
S10 |
Sport |
| 1994 - 1998 |
Chevrolet |
S10 |
SS |
| 1982 - 1992 |
Chevrolet |
S10 |
Tahoe |
| 1999 - 2002 |
Chevrolet |
S10 |
Xtreme |
| 2002 |
Chevrolet |
S10 |
ZR5 |
| 1983 - 1994 |
Chevrolet |
S10 Blazer |
Base, Tahoe |
| 1987 - 1989 |
Chevrolet |
S10 Blazer |
High Country |
| 1994 |
Chevrolet |
S10 Blazer |
LT |
| 1983 - 1992 |
Chevrolet |
S10 Blazer |
Sport |
| 1991 - 1994 |
Chevrolet |
S10 Blazer |
Tahoe LT |
| 1992 - 1996 |
GMC |
Jimmy |
Base |
| 1995 - 1997 |
GMC |
Jimmy |
SL |
| 1992 - 1997 |
GMC |
Jimmy |
SLE, SLT |
| 1993 - 1997 |
GMC |
Jimmy |
SLS |
| 1982 - 1990 |
GMC |
S15 |
Base, Sierra Classic, High Sierra |
| 1987 |
GMC |
S15 |
EL |
| 1983 - 1988 |
GMC |
S15 |
Gypsy |
| 1982 |
GMC |
S15 |
Sierra Grande |
| 1983 - 1991 |
GMC |
S15 Jimmy |
Base |
| 1983 - 1990 |
GMC |
S15 Jimmy |
Gypsy, Sierra Classic |
| 1985 |
GMC |
S15 Jimmy |
High Sierra |
| 1991 |
GMC |
S15 Jimmy |
SLS, SLE, SLT |
| 1988 - 1989 |
GMC |
S15 Jimmy |
Timberline |
| 1991 - 1993 |
GMC |
Sonoma |
Base |
| 1992 |
GMC |
Sonoma |
GT |
| 1994 - 2002 |
GMC |
Sonoma |
SL |
| 1991 - 2001 |
GMC |
Sonoma |
SLE |
| 1993 - 2002 |
GMC |
Sonoma |
SLS |
| 1996 - 2000 |
Isuzu |
Hombre |
XS, S |
| 1980 |
Oldsmobile |
Cutlass |
LS, Brougham, Base |
| 1979 - 1984 |
Oldsmobile |
Cutlass Calais |
Base |
| 1983 - 1984 |
Oldsmobile |
Cutlass Calais |
Hurst |
| 1980 - 1983 |
Oldsmobile |
Cutlass Cruiser |
Base |
| 1980 - 1981 |
Oldsmobile |
Cutlass Cruiser |
Brougham |
| 1979 - 1986 |
Oldsmobile |
Cutlass Salon |
442 |
| 1979 - 1987 |
Oldsmobile |
Cutlass Salon |
Base |
| 1979 - 1980 |
Oldsmobile |
Cutlass Salon |
Brougham |
| 1979 |
Oldsmobile |
Cutlass Salon |
Hurst |
| 1987 |
Oldsmobile |
Cutlass Supreme |
442 |
| 1979 - 1988 |
Oldsmobile |
Cutlass Supreme |
Base |
| 1979 - 1987 |
Oldsmobile |
Cutlass Supreme |
Brougham |
| 1981 - 1985 |
Oldsmobile |
Cutlass Supreme |
LS |
| 1988 |
Oldsmobile |
Cutlass Supreme |
SL, Classic Brougham, International, Indy 500 Pace Car, Classic |
| 1982 - 1987 |
Pontiac |
Bonneville |
Base |
| 1982 - 1986 |
Pontiac |
Bonneville |
Brougham |
| 1984 - 1987 |
Pontiac |
Bonneville |
LE |
| 1979 - 1980 |
Pontiac |
Grand Am |
Base |
| 1979 - 1987 |
Pontiac |
Grand Prix |
Base |
| 1981 - 1987 |
Pontiac |
Grand Prix |
Brougham |
| 1984 - 1987 |
Pontiac |
Grand Prix |
LE |
| 1979 - 1983 |
Pontiac |
Grand Prix |
LJ |
| 1979 - 1980 |
Pontiac |
Grand Prix |
SJ |
| 1979 - 1980 |
Pontiac |
LeMans |
Base, Safari |
