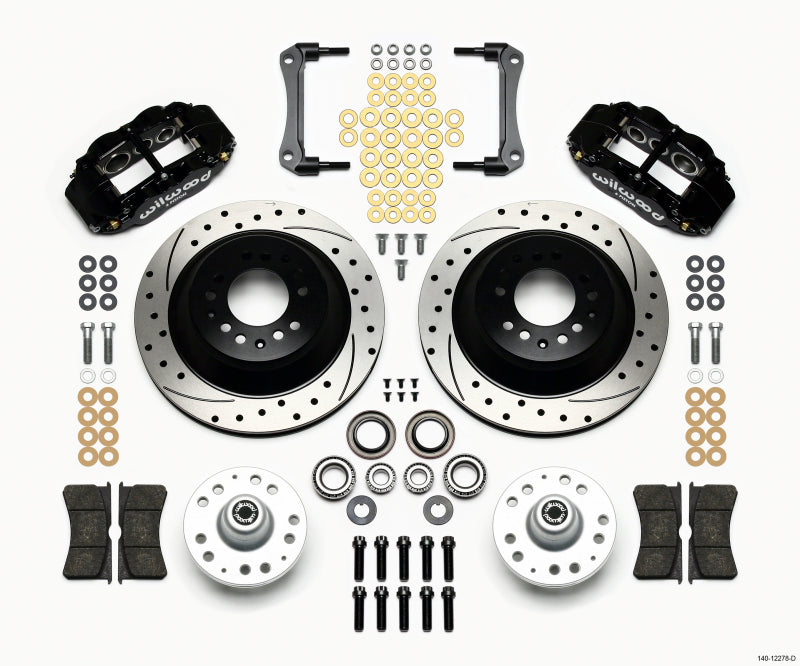

Wilwood FNSL6R Front Hub & 1PC Rtr Kit, 12.88", Dril, 70-78 Camaro
Front Brake Kit
Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)
FNSL6R Billet Forged six-piston calipers with 12.88" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17" and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.
Specifications
| OE Hub Offset: | +.13 |
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Radial |
| Caliper Type: | 6 - Black Powder Coat |
| Rotor Diameter: | 12.88 |
| Min Wheel Diameter Req'd*: | 17 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-11781-BK |
| Right Hand - Part No: | 120-11780-BK |
| Type: | Forged Narrow Superlite 6R |
| Finish Color: | Black Powder Coat |
| Piston Count: | 6 |
| Piston Area (In²): | 4.04 |
| Piston Type: | Stainless |
| Mount Type: | Radial |
| Brake Pad Plate: | 7416 |
| Brake Pad Area (In²): | 8.2 |
| Brake Pad Volume (In³): | 3.8 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-12190-BK |
| Right Hand - Part No: | 160-12189-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.88 |
| Width (in): | 1.1 |
| Vane Count: | 34 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | Yes |
| Hubs | |
|---|---|
| Hub - Part No: | 270-12277 |
| Type: | Hub - Hat Mount |
| Material: | Aluminum |
| Finish Color: | Bare |
| Mount Style: | Hat |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Stud Diameter - BC 1: | 1/2-20 |
| Stud Diameter - BC 2: | 1/2-20 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1975 | Buick | Apollo | SR, Base |
| 1973 - 1977 | Buick | Century | Base |
| 1976 | Buick | Century | Indianapolis 500 Pace Car |
| 1973 - 1975 | Buick | Century | Luxus |
| 1975 - 1977 | Buick | Century | Special, Custom |
| 1977 - 1978 | Buick | Estate Wagon | Base |
| 1977 | Buick | LeSabre | Custom Sport |
| 1977 - 1978 | Buick | LeSabre | Custom, Base |
| 1978 | Buick | LeSabre | Sport |
| 1973 - 1977 | Buick | Regal | Base |
| 1976 - 1977 | Buick | Regal | SR |
| 1975 - 1978 | Buick | Skylark | Base |
| 1978 | Buick | Skylark | Custom, Sport |
| 1976 - 1978 | Buick | Skylark | S |
| 1975 - 1977 | Buick | Skylark | SR |
| 1976 | Cadillac | Seville | Base |
| 1975 - 1978 | Chevrolet | Camaro | LT |
| 1976 - 1978 | Chevrolet | Camaro | LT Rally Sport, Rally Sport |
| 1970 - 1975 | Chevrolet | Camaro | RS |
| 1970 | Chevrolet | Camaro | SS |
| 1970 - 1978 | Chevrolet | Camaro | Z28, Base |
| 1977 | Chevrolet | El Camino | Conquista |
| 1975 - 1977 | Chevrolet | El Camino | SS, Classic, Base |
| 1977 - 1978 | Chevrolet | Impala | Base, Landau |
| 1977 | Chevrolet | Impala | Custom |
| 1975 - 1976 | Chevrolet | Malibu | Classic Estate |
| 1976 - 1977 | Chevrolet | Malibu | Classic Landau |
| 1975 - 1977 | Chevrolet | Malibu | Classic, Base |
| 1976 | Chevrolet | Malibu | Landau |
| 1977 | Chevrolet | Malibu | Sport, Classic Sport |
| 1973 - 1974 | Chevrolet | Monte Carlo | Base |
| 1973 - 1976 | Chevrolet | Monte Carlo | Landau |
| 1973 - 1977 | Chevrolet | Monte Carlo | S |
| 1976 - 1977 | Chevrolet | Nova | Concours |
| 1975 | Chevrolet | Nova | LN |
| 1975 - 1978 | Chevrolet | Nova | Police, Custom, Base |
| 1977 - 1978 | Chevrolet | Nova | Rally |
| 1976 | Chevrolet | Nova | SS |
| 1975 - 1977 | GMC | Sprint | Base, Classic |
| 1975 | GMC | Sprint | High Sierra |
| 1976 | GMC | Sprint | Sierra Madre Del Sur |
| 1975 - 1976 | GMC | Sprint | SP |
| 1977 - 1978 | Oldsmobile | Custom Cruiser | Base |
| 1975 - 1977 | Oldsmobile | Cutlass | 442, S |
| 1975 | Oldsmobile | Cutlass | Base |
| 1977 | Oldsmobile | Cutlass | Colonnade |
| 1976 - 1977 | Oldsmobile | Cutlass | Colonnade S, Vista Cruiser |
| 1975 - 1977 | Oldsmobile | Cutlass Supreme | Base |
| 1977 | Oldsmobile | Cutlass Supreme | Brougham |
| 1976 - 1977 | Oldsmobile | Cutlass Supreme | Colonnade |
| 1975 | Oldsmobile | Cutlass Supreme | Hurst, Cruiser |
| 1975 - 1978 | Oldsmobile | Omega | Base |
| 1978 | Oldsmobile | Omega | Brougham LS |
| 1977 | Oldsmobile | Omega | Deluxe |
| 1976 - 1977 | Oldsmobile | Omega | F85 |
| 1975 | Oldsmobile | Omega | Salon |
| 1976 - 1978 | Oldsmobile | Omega | SX, Brougham |
| 1975 | Oldsmobile | Vista Cruiser | Base |
| 1977 - 1978 | Pontiac | Bonneville | Brougham, Base |
| 1978 | Pontiac | Bonneville | Safari |
| 1977 - 1978 | Pontiac | Catalina | Safari, Base |
| 1975 - 1978 | Pontiac | Firebird | Trans Am, Base, Formula, Esprit |
| 1975 | Pontiac | Grand Am | Base |
| 1976 - 1977 | Pontiac | Grand Prix | Base |
| 1975 - 1977 | Pontiac | Grand Prix | LJ, SJ |
| 1975 - 1977 | Pontiac | LeMans | Safari, Base, Sport |
| 1976 - 1977 | Pontiac | LeMans | Sport Coupe |
| 1977 - 1978 | Pontiac | Phoenix | Base |
| 1978 | Pontiac | Phoenix | LJ, SJ |
| 1975 | Pontiac | Ventura | Custom, S |
| 1975 - 1977 | Pontiac | Ventura | SJ, Base |
Wilwood FNSL6R Front Hub & 1PC Rtr Kit, 12.88", Dril, 70-78 Camaro
Sale price$2,229.06 USD
