Wilwood FNSL6R Front Hub & 1PC Rtr Kit,12.88" Magnum Force Drop Spindle

SKU: 0BFWK | MPN:  140-12272
In stock
Sale price$2,054.06 USD

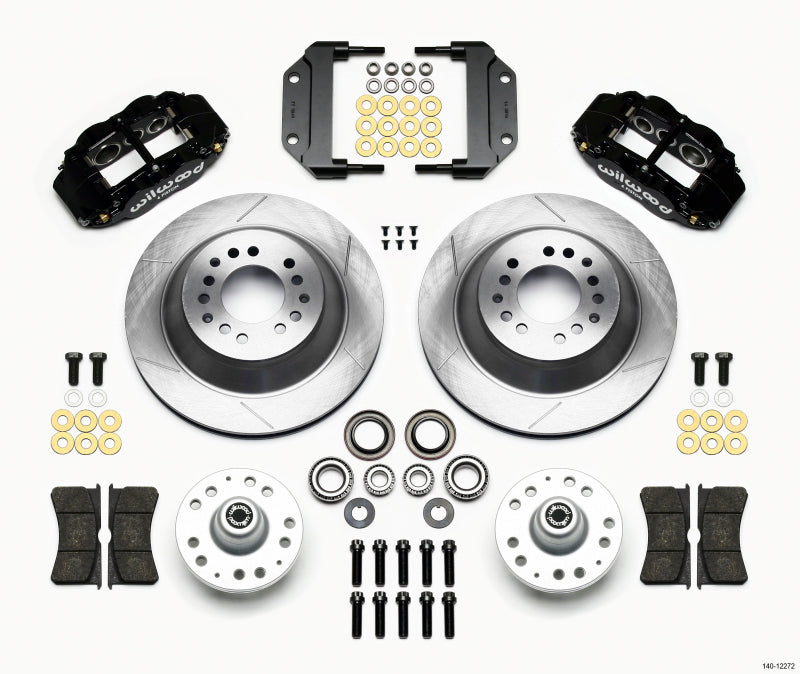

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hub and 1PC Rotor)

FNSL6R Billet Forged six-piston calipers with 12.88" diameter, 1 piece rotor and hats kits deliver the cost effective combination for braking power and style in this group of kits engineered for traditional non-ABS spindles on American muscle cars and vintage rods. Built exclusively for 17” and larger wheels, FNSL6 kits enhance tire and suspension upgrades on all types of custom show and high performance dual-purpose street and track machines. A full range of options for caliper finishes and rotor designs are guaranteed to catch the eye of the most discriminating enthusiast while providing optimized brake performance for every individual application.

Specifications

Spindle Type: Drop Spindle

Mount Type: Radial

Caliper Type: 6 - Black Powder Coat

Rotor Diameter: 12.88

Min Wheel Diameter Req'd*: 17



Calipers

Left Hand - Part No: 120-11781-BK

Right Hand - Part No: 120-11780-BK

Type: Forged Narrow Superlite 6R

Finish Color: Black Powder Coat

Piston Count: 6

Piston 1 Bore (in): 1.62

Piston 2 Bore (in): 1.12

Piston 3 Bore (in): 1.12

Piston Area (In²): 4.04

Piston Type: Stainless

Mount Type: Radial

Brake Pad Plate: 7416

Brake Pad Area (In²): 8.2

Brake Pad Volume (In³): 3.8

Pad Compound: BP-10



Rotors

Left Hand - Part No: 160-12191

Right Hand - Part No: 160-12191

Type: GT 32 Straight Vane

Style: GT Slotted

Surface Finish: Plain

Material: Iron

Outside Diameter (in): 12.88

Width (in): 1.1

Vane Count: 34 V

Design Type: ULHPS

Bedded: No

Dynamically Balanced: Yes



Hubs

Hub - Part No: 270-11533

Type: Hub - Hat Mount

Material: Aluminum

Finish Color: Bare

Mount Style: Hat

Bolt Circle 1: 5 x 4.50

Bolt Circle 2: 5 x 4.75

Stud Diameter - BC 1: 1/2-20

Stud Diameter - BC 2: 1/2-20
