Wilwood D154 P/S Park Brake Kit, Drilled, Chevy 12 Bolt 2.75" Off w/ C-Clips
Rear Brake Kit - Rear Kit

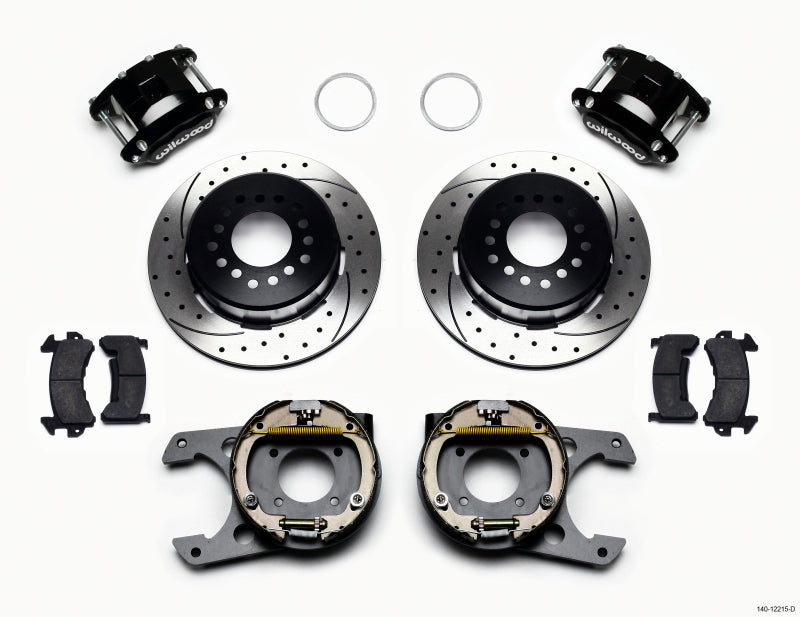

D154 Rear Parking Brake Kit
D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
Specifications
| Rear End Axle: | 12 Bolt |
| Axle Offset: | 2.75 - 2.81 |
| Mount Type: | Floating |
| Caliper Type: | 2 - Black Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 16 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-11875-BK |
| Right Hand - Part No: | 120-11875-BK |
| Type: | D154 |
| Finish Color: | Black Powder Coat |
| Piston Count: | 2 |
| Piston Area (In²): | 1.98 |
| Piston Type: | Stainless |
| Mount Type: | Floating |
| Brake Pad Plate: | D154 |
| Brake Pad Area (In²): | 8.7 |
| Brake Pad Volume (In³): | 2.9 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-9815K |
| Right Hand - Part No: | 160-9814-BK |
| Type: | SRP Drilled Rotor & Hat |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
Wilwood D154 P/S Park Brake Kit, Drilled, Chevy 12 Bolt 2.75" Off w/ C-Clips
Sale price$1,025.18 USD
Regular price$1,145.40 USD
