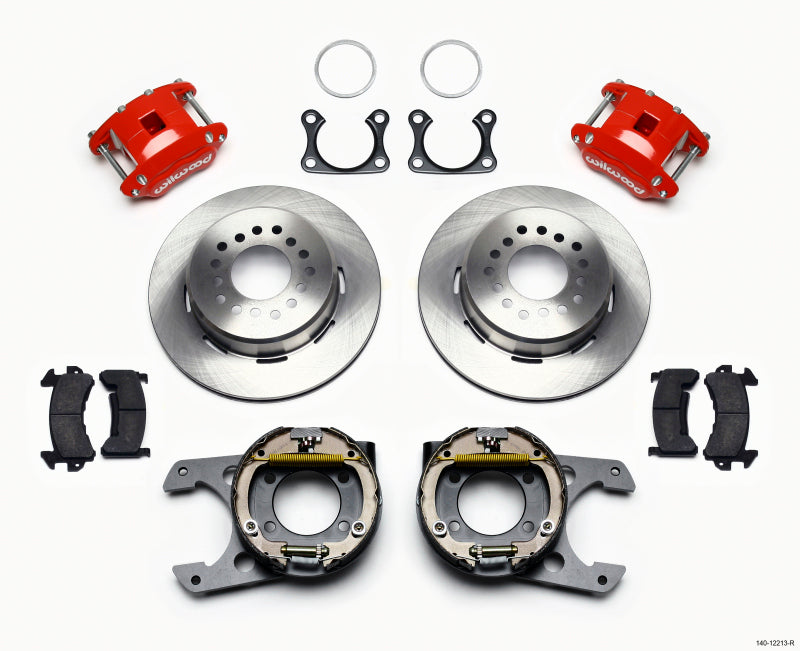

Wilwood D154 P/S Park Brake Kit,Red Big Ford 2.36" Offset
D154 Rear Parking Brake Kit
D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19” one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
Specifications
Rear End Axle: Big Ford
Axle Offset: 2.36
Mount Type: Floating
Caliper Type: 2 - Red Powder Coat
Rotor Diameter: 12.19
Min Wheel Diameter Req'd*: 16
Calipers
Left Hand - Part No: 120-11875-RD
Right Hand - Part No: 120-11875-RD
Type: D154
Finish Color: Red Powder Coat
Piston Count: 2
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Floating
Brake Pad Plate: D154
Brake Pad Area (In²): 8.7
Brake Pad Volume (In³): 2.9
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-7508
Right Hand - Part No: 160-7508
Type: Ultralite HP 32 & Hat
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 12.19
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
