Wilwood D154 P/S P-B Kit, Drilled-Red, New Big Ford 2.50" Offset
Wilwood D154 P/S P-B Kit, Drilled-Red, New Big Ford 2.50" Offset
Shipping calculated at checkout.
To United StatesChange
Final options and totals are confirmed at checkout.
Low stock: 8 left
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Shipping & returns
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.
Read the shipping policyRear Brake Kit - Rear Kit

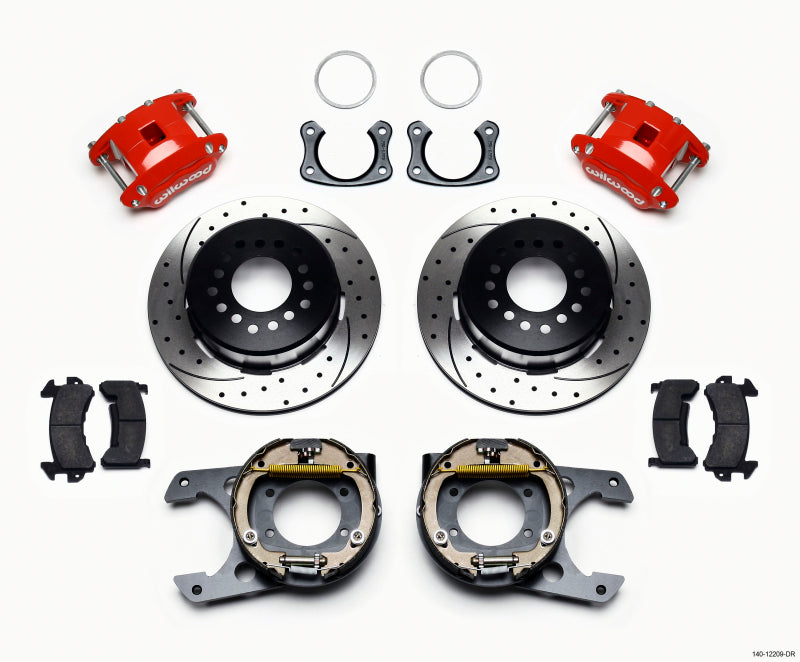

D154 Rear Parking Brake Kit
D154 Pro-Series rear disc kits provides a complete solution for popular muscle car rear axles that require a parking brake. Forged D154 dual piston calipers, 12.19" one-piece drum/rotors, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. D154 rear caliper kits offer a complimentary match to vehicles using Wilwood D52 or D154 calipers on OE spindles. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance.
Specifications
| Rear End Axle: | Big Ford New Style |
| Axle Offset: | 2.5 |
| Mount Type: | Lug |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 16 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-11875-RD |
| Right Hand - Part No: | 120-11875-RD |
| Type: | D154 |
| Finish Color: | Red Powder Coat |
| Piston Count: | 2 |
| Piston Area (In²): | 1.98 |
| Piston Type: | Stainless |
| Mount Type: | Floating |
| Brake Pad Plate: | D154 |
| Brake Pad Area (In²): | 8.7 |
| Brake Pad Volume (In³): | 2.9 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-9813-BK |
| Right Hand - Part No: | 160-9812-BK |
| Type: | SRP Drilled Rotor & Hat |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
