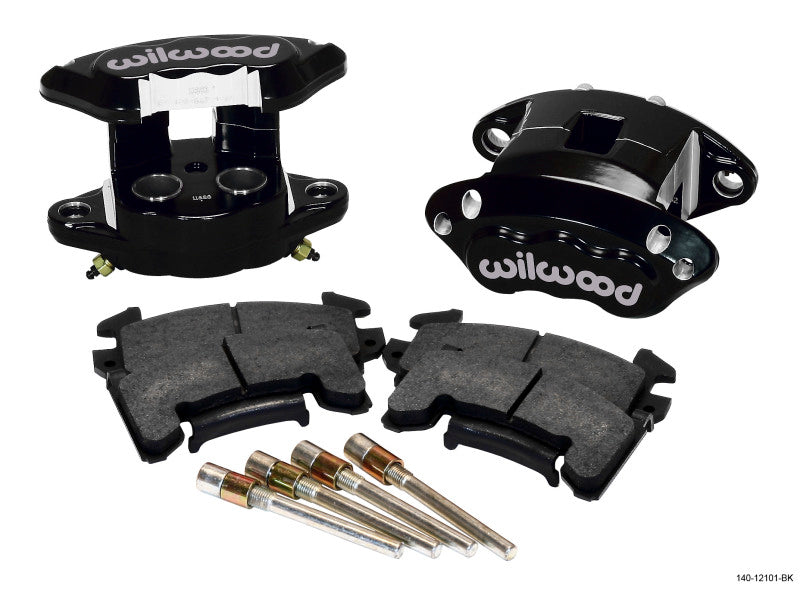

Wilwood D154 Rear Caliper Kit - Black 1.12 / 1.12" Piston

D154 Rear Caliper Kit

Wilwood's D154 Rear Caliper Kit offers a matching rear replacement option for our front D154 calipers. It is a direct bolt-on 2-piston replacement for the factory original single piston "Metric" calipers used on many custom application rears. With the added benefit of smaller rear piston sizing (1.96 sq-inches of area) not normally available in OEM calipers, for correct front and rear bias. Forged billet aluminum bodies, stainless steel pistons, and competition style high-temperature seals put an end to the rust, bore pitting, and seal failures that plague the OE caliper design. D154 calipers provide low-maintenance performance and a huge weight savings with high temperature reliability for the street and track. D52 calipers mount in the stock location over stock rotors; use the original style OE D154 brake pads and an OE M10-1.5 banjo bolt brake line mounting. Calipers can be used with most wheels that clear the OE calipers. Kits contain Wilwood’s hardened slide pins and BP-10 high friction pads.

Specifications

Rear End Axle: OEM

Axle Offset: 0

Mount Type: Floating

Caliper Type: 2 - Black Powder Coat

Calipers

Left Hand - Part No: 120-11874-BK

Right Hand - Part No: 120-11874-BK

Type: D154

Finish Color: Black Powder Coat

Piston Count: 2

Piston 1 Bore (in): 1.12

Piston 2 Bore (in): 1.12

Piston Area (In²): 1.98

Piston Type: Stainless

Mount Type: Floating

Brake Pad Plate: D154

Brake Pad Area (In²): 8.7

Brake Pad Volume (In³): 2.9

Pad Compound: BP-10
