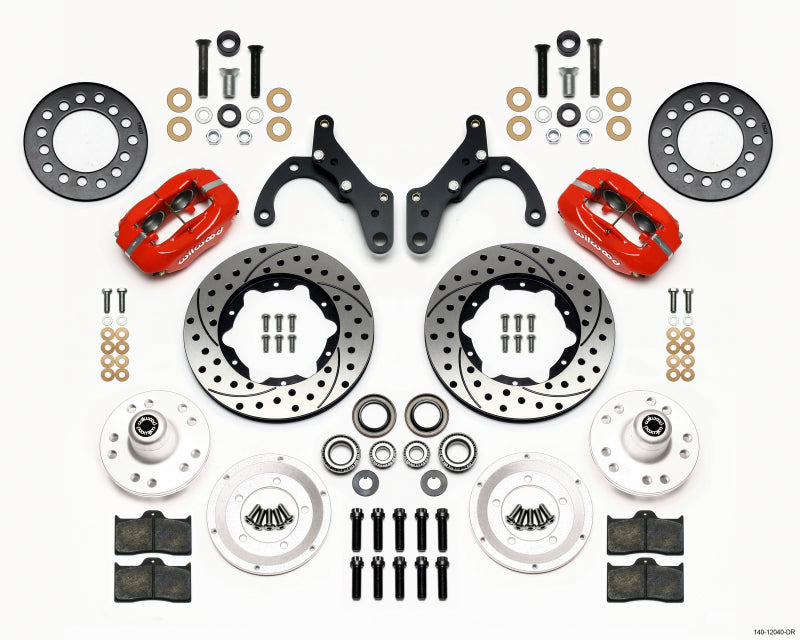

Wilwood FDL Front Kit,11.00",Drill-Red 69-70 Impala Drum/Disc,69-82 Vette

Forged Dynalite Pro Series Front Brake Kit

FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15 wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.

Specifications

OE Hub Offset: +.12

Spindle Type: Factory Drum SpindleFactory Disc Spindle

Mount Type: Lug

Caliper Type: 4 - Red Powder Coat

Rotor Diameter: 11

Min Wheel Diameter Req'd*: 14

Calipers

Left Hand - Part No: 120-13844-RD

Right Hand - Part No: 120-13844-RD

Type: Forged Dynalite Internal

Finish Color: Black Powder Coat

Piston Count: 4

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.75

Piston Area (In²): 4.80

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 7112

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-7100-BK

Right Hand - Part No: 160-7099-BK

Type: SRP Drilled Rotor

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 11

Width (in): 0.81

Vane Count: 30 V

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: No

Hubs

Hub - Part No: 270-12038

Type: Hub - Vented Rotor Offset

Material: Aluminum

Finish Color: Bare

Mount Style: Adapter

Bolt Circle 1: 5 x 4.50

Bolt Circle 2: 5 x 4.75

Stud Diameter - BC 1: 1/2-20

Stud Diameter - BC 2: 1/2-20

Vehicle Fitments:
