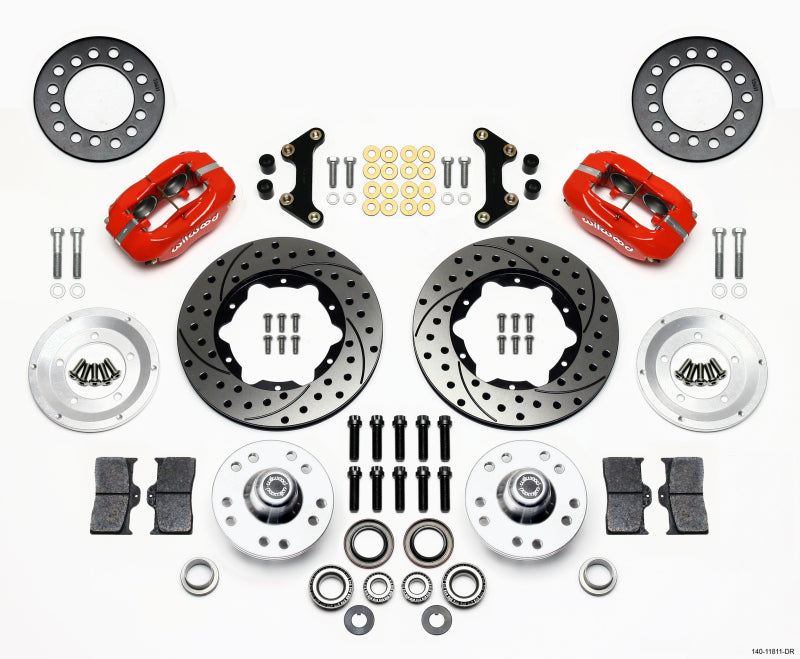

Wilwood FDL Front Kit, 11.00", Drill-Red, 49-54 Chevy / 53-62 Corvette
Forged Dynalite Pro Series Front Brake Kit
FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for OEM drum brake spindle applications for the popular Chevy 1949-1954 Passenger and 1953-1962 Corvette vehicles. Based on the venerable forged billet Dynalite caliper and 11.00" x .81 rotors, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. This kit requires no modifications for installation, and provides plenty of clearance inside most popular 15" wheels. This kit will also work with aftermarket 14" disc brake steel wheels available from other vendors. FDL Pro-Series kits can be used with either manual or power boost master cylinders.
| Kit Summary | |
|---|---|
| OE Hub Offset: | +.19 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Factory Drum Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Red Powder Coat |
| Rotor Diameter: | 11 |
| Min Wheel Diameter Req'd*: | 14 |
| *This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. | |
| UPC Number | |
|---|---|
| UPC | 889545014075 |
Compatible Vehicles for this Brake Kit
BRAKE KIT:Forged Dynalite Pro Series Front Brake Kit
Factory Drum Spindle This Brake Kit is Compatible with the Following Vehicle Makes: Chevrolet
Caution: THIS BRAKE KIT HAS AN HUB OFFSET OF: +.19
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.
Kit Components & Specifications
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13844-RD |
| Right Hand - Part No: | 120-13844-RD |
| Type: | Forged Dynalite Internal |
| Finish Color: | Red Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-7100-BK |
| Right Hand - Part No: | 160-7099-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 11 |
| Width (in): | 0.81 |
| Vane Count: | 30 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
| Hubs | |
|---|---|
| Hub - Part No: | 270-11813 |
| Type: | Hub - Vented Rotor Offset |
| Material: | Aluminum |
| Finish Color: | Bare |
| Mount Style: | Adapter |
| Bolt Circle 1: | 5 x 4.75 |
| Bolt Circle 2: | 5 x 5.00 |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | 1/2-20 |
| Stud Diameter - BC 2: | 1/2-20 |
| Stud Diameter - BC 3: | |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1950 - 1954 | Chevrolet | Bel Air | Base |
