Wilwood GP320 Front Kit,Top Mount 10.50" Super Alloy Vntd Rotor,Asph Midget *Discontinued
Wilwood GP320 Front Kit,Top Mount 10.50" Super Alloy Vntd Rotor,Asph Midget *Discontinued
Out of stock
Not sure this is the right part? Ask us to check fitment. Include your year, make, model, engine and manufacturer part number.
Need this part?
This item is currently unavailable. Ask us about availability or help finding a suitable replacement.
Shipping & returns
This selection is unavailable. Ask us to confirm availability and timing.
Shipping details
In-stock orders are processed within 48 hours; transit time is additional.
International orders include export processing and customs clearance. Duties, taxes and brokerage are extra; final freight charges may change after remeasurement.

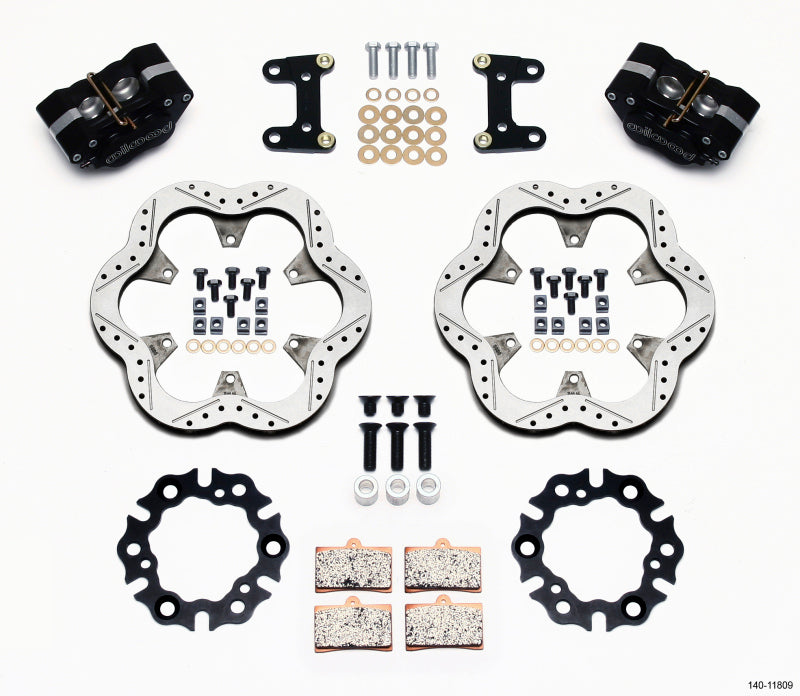

Read the shipping policyGP320 Midget Front Brake Kit
The GP320 System features Wilwood’s competition proven dynamic rotor mount system, specially treated Super Alloy lightweight steel alloy rotors, and the highly efficient clamping force of the GP320 billet caliper for the most positive and fade-free performance available for sprint racing.Component Features: GP 320 Billet Aluminum 4 Piston Calipers with Four small pistons provide balanced distribution of the pad load for improved response and longer pad wear. Super Alloy Rotors: Unlike ceramic coatings that can flake away from the base metal during high heat cycling, Wilwood’s Super Alloy material controls heat transfer and provides a durable surface that can generate high friction for long, trouble-free duty cycles without the need for recoating. Dynamic mounting with Wilwood’s t-nut system isolates all thermal stress and distortion at the rotor mounting points caused by the different temperatures and expansion rates between the lightweight alloy steel rotor and the aluminum rotor mount plate. The rotors stay flatter and run truer to eliminate any possibility of pad knock-back or deflection. Dynamic Mount Rotor Plate: Lightweight billet alloy plate is machined with the slots to accept the rotor bolt t-nuts and adapt the rotor directly to 3 bolt sprint hubs. Wilwood 6211-CM Brake Pads A rigid caliper mounting bracket with premium grade fasteners and shim washers are included for secure, deflection free mounting.
Specifications
Mount Type: Lug
Caliper Type: 4 - Type III Ano
Rotor Diameter: 10.5
Calipers
Left Hand - Part No: 120-10715
Right Hand - Part No: 120-10714
Type: GP320
Finish Color: Type III Ano
Piston Count: 4
Piston 1 Bore (in): 1.25
Piston 2 Bore (in): 1.25
Piston Area (In²): 2.46
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 6211
Brake Pad Area (In²): 3.65
Brake Pad Volume (In³): 1.03
Pad Compound: CM - Composite Metallic
Rotors
Left Hand - Part No: 160-11217
Right Hand - Part No: 160-11217
Type: Super Alloy
Style: Drilled
Surface Finish: Plain
Material: Super Alloy
Outside Diameter (in): 10.5
Width (in): 0.78
Vane Count: 24 V
Design Type: Alloy Scalloped
Bedded: No
Dynamically Balanced: No
