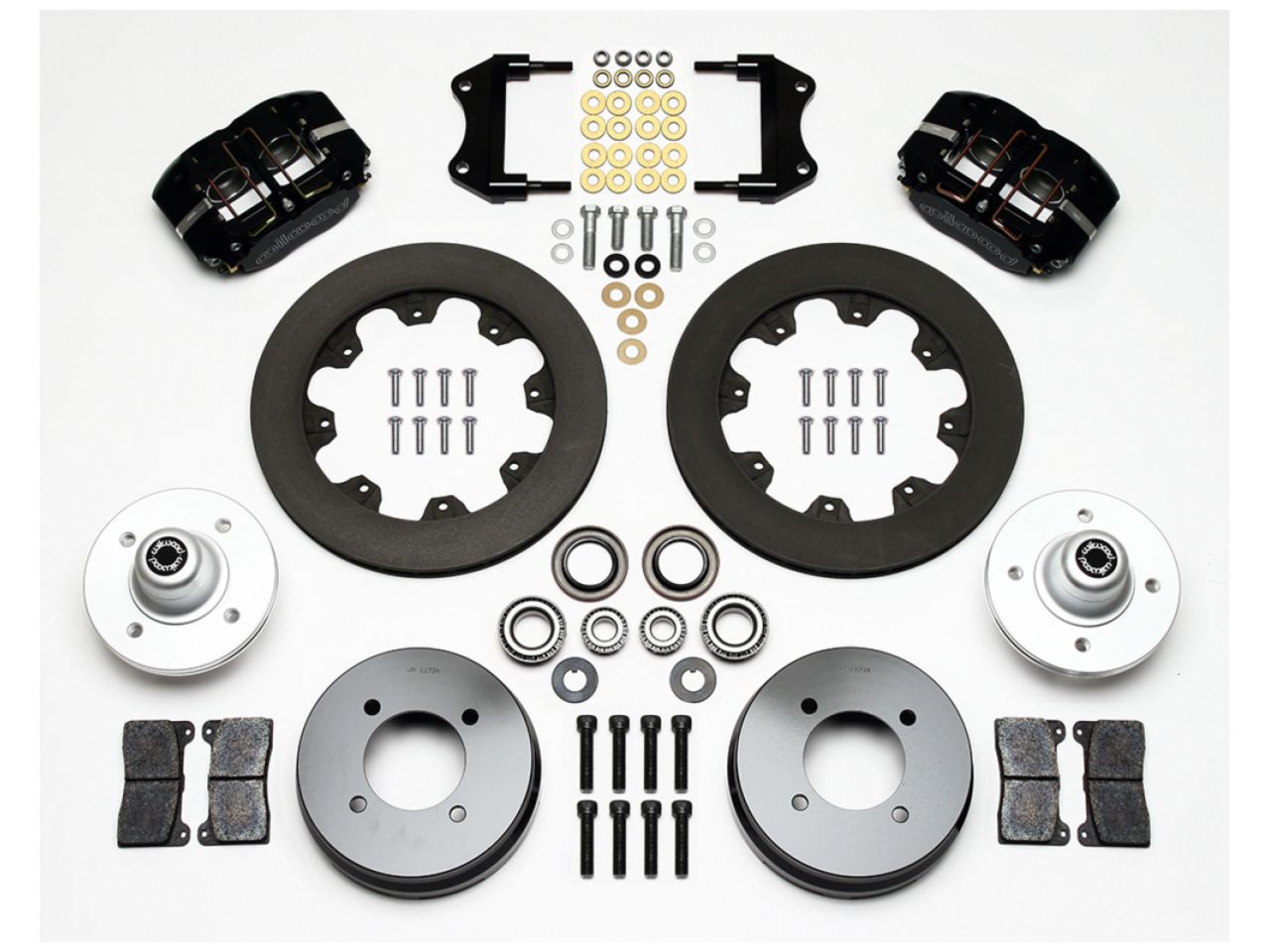

Wilwood NDPR BB Front Kit, 11.75" Vented, Sunbeam Tiger
Wilwood

Wilwood NDPR BB Front Kit, 11.75" Vented, Sunbeam Tiger

SKU: 017V5 | MPN:  140-11743
Sale price$1,573.59 USD
Sold out

Front Brake Kit

Dynapro Radial Big Brake Front Brake Kit (Hub)

Radial mounting provides secure and accurate installation of the Forged Billet Narrow DynaPro four piston caliper with large diameter rotors for this group of rear wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers &, competition vehicles. This kit is engineered specific for 64-67 Sunbeam Tiger to maintain full compatibility with the OE spindle. Forged aluminum 4 bolt hubs and hats round out the assembly. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.

Specifications

Spindle Type: Factory Disc Spindle
Mount Type: Radial
Caliper Type: 4 - Type III Ano
Rotor Diameter: 11.75
Min Wheel Diameter Req'd*: 15
Calipers
Left Hand - Part No: 120-10000
Right Hand - Part No: 120-10000
Type: Narrow Dynapro Radial Mount
Finish Color: Type III Ano
Piston Count: 4
Piston Area (In²): 4.80
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7812
Brake Pad Area (In²): 6.36
Brake Pad Volume (In³): 2.1
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-5841
Right Hand - Part No: 160-5841
Type: Ultralite HP 32
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11.75
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
Rotor Hats
Hat - Part No: 170-11734
Type: GT Hat - Straight Bell
Material: Aluminum
Finish Color: Black E-Coat
Hat Offset Dimension (in): 2.12
Bolt Circle 1: 4 x 4.25
Stud Diameter - BC 1: 0.45
Stud Diameter - BC 2: 0
Stud Diameter - BC 3: 0
