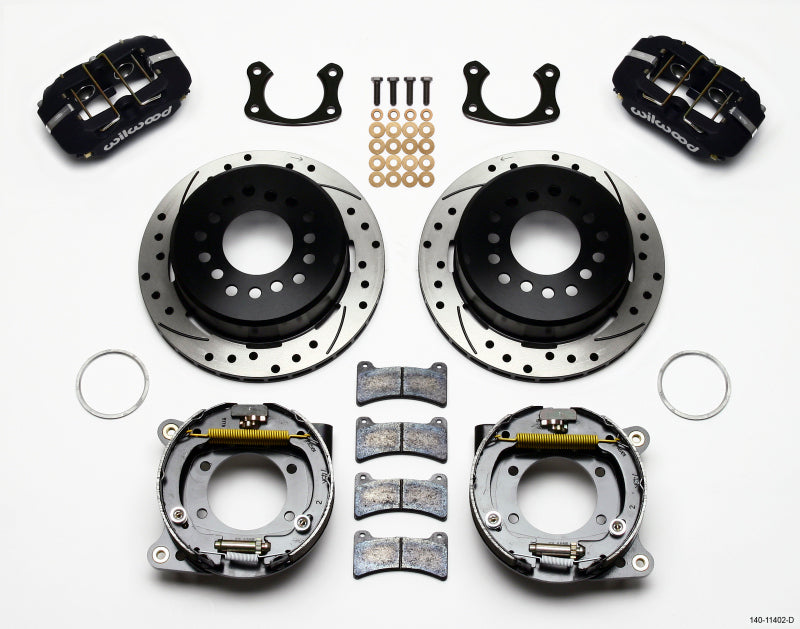

Wilwood FDP-LP 11.00" P-Brake Kit,Drilled New Big Ford 2.36" Offset

Dynapro Low-Profile Rear Parking Brake Kit

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Specifications

Rear End Axle: Big Ford New Style

Axle Offset: 2.36

Mount Type: Lug

Caliper Type: 4 - Black Powder Coat

Rotor Diameter: 11

Min Wheel Diameter Req'd*: 14

Calipers

Left Hand - Part No: 120-12160-BK

Right Hand - Part No: 120-12160-BK

Type: Forged Dynapro Low Profile

Finish Color: Black Powder Coat

Piston Count: 4

Piston 1 Bore (in): 1.12

Piston 2 Bore (in): 1.12

Piston Area (In²): 1.98

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 4812

Brake Pad Area (In²): 5.1

Brake Pad Volume (In³): 1.71

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-11375-BK

Right Hand - Part No: 160-11374-BK

Type: SRP Drilled Rotor & Hat

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 11

Width (in): 0.81

Vane Count: 32 V

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: No
