Wilwood Dynapro Low-Profile Rear Parking Brake Kit *Discontinued

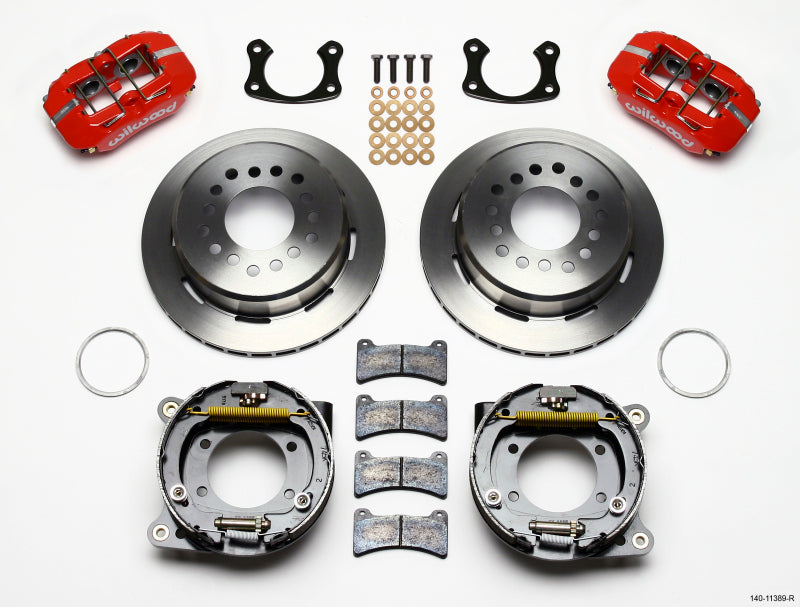

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.

Specifications:

Rear End Axle: Big Ford New Style

Axle Offset: 2.5

Mount Type: Lug

Caliper Type: 4 - Red Powder Coat

Rotor Diameter: 11

Min Wheel Diameter Req'd*: 14

BRAKE KIT:   Dynapro Low-Profile Rear Parking Brake Kit

This Brake Kit is Compatible with the Following Vehicle Makes:

Note: Kit may fit other vehicles, call Wilwood Sales⁄Tech Support at (805) 388-1188 for more information.

REAR END:   Big Ford New Style - Rear Kit

AXLE OFFSET:   2.5

For a Complete Listing including ALL Makes, Models and Years, Please click on the Axle Offse
