Wilwood FDP-LP 11.00" P-Brake Kit - Red Big Ford 2.36" Offset
Dynapro Low-Profile Rear Parking Brake Kit

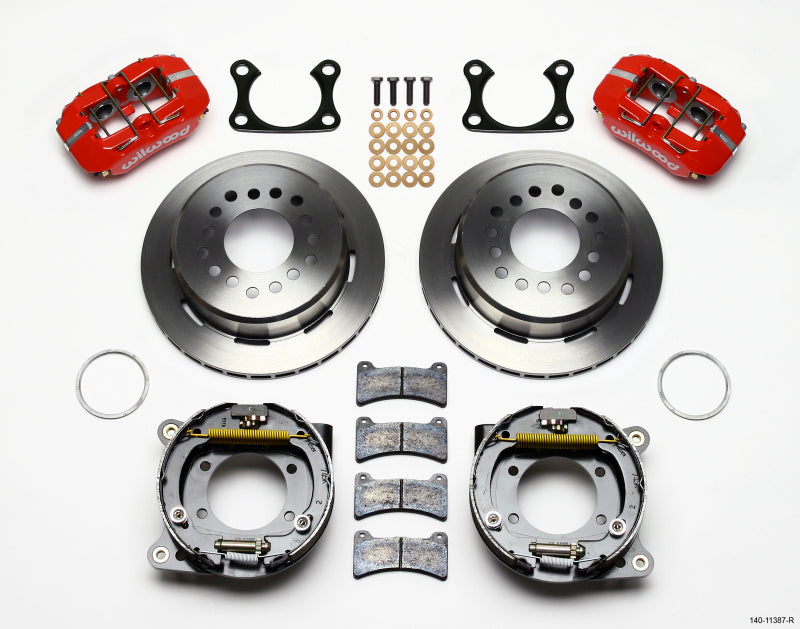

Forged Dynapro Low-Profile Pro-Series rear disc brake kits provide a complete solution for popular muscle car rear axles on applications that require a parking brake assembly and extra clearance for 14.00” to 15.00” rim applications. Forged billet Dynapro Low-Profile four-piston calipers 11.00” one-piece hat and rotor assemblies, and high friction pads provide optimized and balanced braking for all types of custom performance street/strip and show machines. The neatly hidden internal shoe system provides a clean installation with superior static holding power for parking. Optional caliper finishes and rotor designs enable the builder to personalize the style and optimize brake performance for every individual application.
Specifications
Rear End Axle: Big Ford
Axle Offset: 2.36
Mount Type: Lug
Caliper Type: 4 - Red Powder Coat
Rotor Diameter: 11
Min Wheel Diameter Req'd*: 14
Calipers
Left Hand - Part No: 120-12160-RD
Right Hand - Part No: 120-12160-RD
Type: Forged Dynapro Low Profile
Finish Color: Red Powder Coat
Piston Count: 4
Piston 1 Bore (in): 1.12
Piston 2 Bore (in): 1.12
Piston Area (In²): 1.98
Piston Type: Stainless
Mount Type: Lug
Brake Pad Plate: 4812
Brake Pad Area (In²): 5.1
Brake Pad Volume (In³): 1.71
Pad Compound: BP-10
Rotors
Left Hand - Part No: 160-11364
Right Hand - Part No: 160-11364
Type: Ultralite HP 32 & Hat
Style: Plain Face
Surface Finish: Plain
Material: Iron
Outside Diameter (in): 11
Width (in): 0.81
Vane Count: 32 V
Design Type: ULHP
Bedded: No
Dynamically Balanced: No
