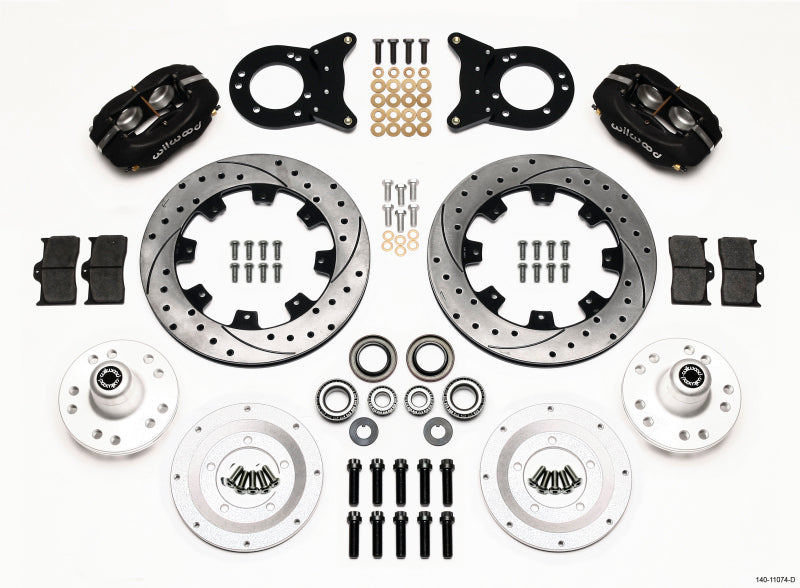

Wilwood FDL Front Kit, 12.19", Drilled, 1970-1973 Mustang Disc & Drum Spindle
Front Brake Kit
Forged Dynalite Big Brake Front Brake Kit (Hub)
FDL Big Brake Front Hub Kits provide the added advantage of larger diameter brake rotors for traditional non-ABS spindles on American muscle cars and vintage rods. Forged billet Dynalite calipers, 12.19" diameter rotors, and high performance Wilwood brake pads generate big brake stopping power to compliment wheel, tire, and suspension upgrades on all types of custom show and performance street / strip machines. A full range of options for caliper finish and rotor design provide custom builders with the ability to personalize the style and performance requirements of the mildest to the wildest machines.
Specifications
| OE Hub Offset: | +.09 |
| Spindle Type: | Factory Drum SpindleFactory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 12.19 |
| Min Wheel Diameter Req'd*: | 15 |
| Calipers | |
|---|---|
| Left Hand - Part No: | 120-13844-BK |
| Right Hand - Part No: | 120-13844-BK |
| Type: | Forged Dynalite Internal |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Left Hand - Part No: | 160-7104-BK |
| Right Hand - Part No: | 160-7103-BK |
| Type: | SRP Drilled Rotor |
| Style: | SRP Drilled & Slotted |
| Surface Finish: | Black Electro Coat |
| Material: | Iron |
| Outside Diameter (in): | 12.19 |
| Width (in): | 0.81 |
| Vane Count: | 32 V |
| Design Type: | SRP-BLK |
| Bedded: | No |
| Dynamically Balanced: | No |
| Hubs | |
|---|---|
| Hub - Part No: | 270-11070 |
| Type: | Hub - Vented Rotor Offset |
| Material: | Aluminum |
| Finish Color: | Bare |
| Mount Style: | Adapter |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Stud Diameter - BC 1: | 1/2-20 |
| Stud Diameter - BC 2: | 1/2-20 |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1970 | Ford | Fairlane | 500 |
| 1970 | Ford | Falcon | Base, Futura |
| 1970 - 1974 | Ford | Maverick | Base |
| 1969 - 1973 | Ford | Mustang | Base |
| 1969 - 1971 | Ford | Mustang | Boss 302 |
| 1971 - 1972 | Ford | Mustang | Boss 351 |
| 1969 - 1970 | Ford | Mustang | Boss 429, Shelby GT-500, Shelby GT-350 |
| 1970 - 1973 | Ford | Mustang | Grande, Mach 1 |
| 1970 - 1971 | Ford | Ranchero | 500, Base, Squire, GT |
| 1971 | Ford | Torino | 500 |
| 1970 - 1971 | Ford | Torino | GT, Base, Super Cobra Jet, Cobra, Brougham, Squire |
| 1970 - 1973 | Mercury | Comet | Base |
| 1970 - 1973 | Mercury | Cougar | Base, XR-7 |
| 1970 | Mercury | Cougar | Boss 429 |
| 1970 - 1971 | Mercury | Cougar | Cobra Jet, Boss 302 |
| 1970 - 1971 | Mercury | Cyclone | Base, GT, Spoiler |
| 1970 - 1971 | Mercury | Montego | Base, Villager, MX Brougham, MX |
Wilwood FDL Front Kit, 12.19", Drilled, 1970-1973 Mustang Disc & Drum Spindle
Sale price$1,134.61 USD
Regular price$1,267.97 USD
