Front Brake Kit
Forged Dynalite Pro Series Front Brake Kit

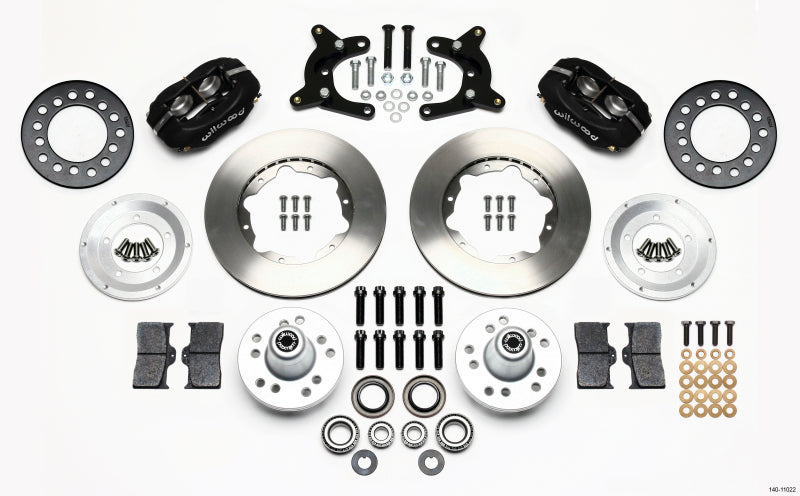

Wilwood's new limited offset FDL Pro-Series Front Hub Kits for Dodge & Plymouth 1962-1972 A-Body vehicles, offer disc brake upgrade solutions for OEM 9" inch drum brake spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit narrows the track with by only -.08" from original Drum brake position. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete calipers, rotors, hub assembly, brackets and hardware. Requires purchase of additional brake lines shown below.
Specifications
| OE Hub Offset: |
-.08 |
| Spindle Type: |
Factory Drum Spindle |
| Mount Type: |
Lug |
| Caliper Type: |
4 - Black Powder Coat |
| Rotor Diameter: |
11 |
| Min Wheel Diameter Req'd*: |
14 |
| Calipers |
|---|
| Left Hand - Part No: |
120-13844-BK |
| Right Hand - Part No: |
120-13844-BK |
| Type: |
Forged Dynalite Internal |
| Finish Color: |
Black Powder Coat |
| Piston Count: |
4 |
| Piston Area (In²): |
4.80 |
| Piston Type: |
Stainless |
| Mount Type: |
Lug |
| Brake Pad Plate: |
7112 |
| Brake Pad Area (In²): |
6.36 |
| Brake Pad Volume (In³): |
2.1 |
| Pad Compound: |
BP-10 |
| Rotors |
|---|
| Left Hand - Part No: |
160-5840 |
| Right Hand - Part No: |
160-5840 |
| Type: |
Ultralite HP 30 |
| Style: |
Plain Face |
| Surface Finish: |
Plain |
| Material: |
Iron |
| Outside Diameter (in): |
11 |
| Width (in): |
0.81 |
| Vane Count: |
30 V |
| Design Type: |
ULHP |
| Bedded: |
No |
| Dynamically Balanced: |
No |
| Hubs |
|---|
| Hub - Part No: |
270-11527 |
| Type: |
Hub - Vented Rotor Offset |
| Material: |
Aluminum |
| Finish Color: |
Bare |
| Mount Style: |
Adapter |
| Bolt Circle 1: |
5 x 4.00 |
| Bolt Circle 2: |
5 x 4.50 |
| Stud Diameter - BC 1: |
1/2-20 |
| Stud Diameter - BC 2: |
1/2-20 |
Vehicle Fitments:
| Year |
Make |
Model |
Submodel |
| 1963 - 1968 |
Dodge |
Dart |
270 |
| 1963 - 1972 |
Dodge |
Dart |
Base |
| 1971 - 1972 |
Dodge |
Dart |
Demon 340, Special, Demon |
| 1963 - 1969 |
Dodge |
Dart |
GT |
| 1964 - 1969 |
Dodge |
Dart |
GTS |
| 1969 - 1970 |
Dodge |
Dart |
Swinger 340 |
| 1969 - 1972 |
Dodge |
Dart |
Swinger, Custom |
| 1970 - 1972 |
Plymouth |
Duster |
Base, 340 |
| 1971 - 1972 |
Plymouth |
Scamp |
Base |
| 1968 - 1969 |
Plymouth |
Valiant |
100 |
| 1960 - 1966 |
Plymouth |
Valiant |
200 |
| 1960 - 1972 |
Plymouth |
Valiant |
Base |
| 1962 - 1969 |
Plymouth |
Valiant |
Signet |
