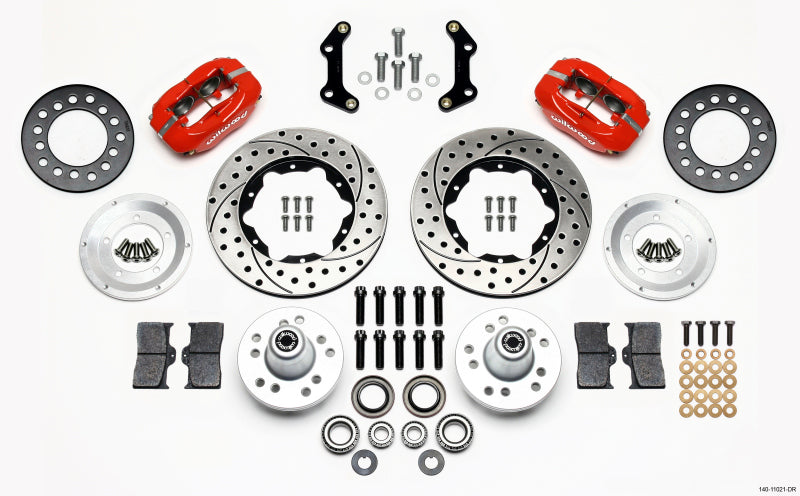

Wilwood FDL Front Kit,11.00",Drilled,Red 70-72 CDP B & E Body-Disc

Forged Dynalite Pro Series Front Brake Kit

Wilwood's new limited offset FDL Pro-Series Front Hub Kits for Chrysler, Dodge & Plymouth 1970-1972 B & E-Body vehicles, offer disc brake upgrade solutions for OEM Disc spindles. We have completely redesigned our Pro Series line of brake kits using a larger 11" rotor and new forged aluminum hubs with the express purpose of maintaining the factory wheel position. This new kit narrows the track with by only -.06" from original disc brake position. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most vehicle applications require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders. Kits come complete calipers, rotors, hub assembly, brackets and hardware. Requires purchase of additional brake lines shown below.

Specifications

OE Hub Offset: -.06

Spindle Type: Factory Disc Spindle

Mount Type: Lug

Caliper Type: 4 - Red Powder Coat

Rotor Diameter: 11

Min Wheel Diameter Req'd*: 14

Calipers

Left Hand - Part No: 120-13844-RD

Right Hand - Part No: 120-13844-RD

Type: Forged Dynalite Internal

Finish Color: Red Powder Coat

Piston Count: 4

Piston 1 Bore (in): 1.75

Piston 2 Bore (in): 1.75

Piston Area (In²): 4.80

Piston Type: Stainless

Mount Type: Lug

Brake Pad Plate: 7112

Brake Pad Area (In²): 6.36

Brake Pad Volume (In³): 2.1

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-7100-BK

Right Hand - Part No: 160-7099-BK

Type: SRP Drilled Rotor

Style: SRP Drilled & Slotted

Surface Finish: Black Electro Coat

Material: Iron

Outside Diameter (in): 11

Width (in): 0.81

Vane Count: 30 V

Design Type: SRP-BLK

Bedded: No

Dynamically Balanced: No

Hubs

Hub - Part No: 270-11516

Type: Hub - Vented Rotor Offset

Material: Aluminum

Finish Color: Bare

Mount Style: Adapter

Bolt Circle 1: 5 x 4.00

Bolt Circle 2: 5 x 4.50

Stud Diameter - BC 1: 1/2-20

Stud Diameter - BC 2: 1/2-20
