Wilwood FDL Front Kit, 11.00", 79-81 Camaro
Forged Dynalite Pro Series Front Brake Kit
FDL Pro-Series Front Hub Kits offer complete disc brake upgrade solutions for traditional non-ABS spindle applications on American muscle cars, vintage rods, and heavy weight drag cars. Based on the venerable forged billet Dynalite caliper, these versatile kits are easily optioned to suit the braking requirements and style preferences for a daily driver, serious competition, or the most discriminating show enthusiast. Most kits require no modifications for installation, and provide plenty of clearance inside popular 15" wheels. FDL Pro-Series kits can be used with either manual or power boost master cylinders.
| Kit Summary | |
|---|---|
| OE Hub Offset: | +.09 |
| (Increase / Decrease Track Width) | |
| Spindle Type: | Factory Disc Spindle |
| Mount Type: | Lug |
| Caliper Type: | 4 - Black Powder Coat |
| Rotor Diameter: | 11 |
| Min Wheel Diameter Req'd*: | 14 |
| *This Brake Kit may fit 14-inch wheels. Please refer to the wheel clearance diagram to check to see if it will fit your specific wheel. | |
THIS BRAKE KIT HAS AN HUB OFFSET OF: +.09
This Hub Offset will move the wheels inward or outward from the fender by this amount on each side of the vehicle
Notes:
1. Front kits fit 11" rotor spindles only.
2. Requires modifications to original spindle

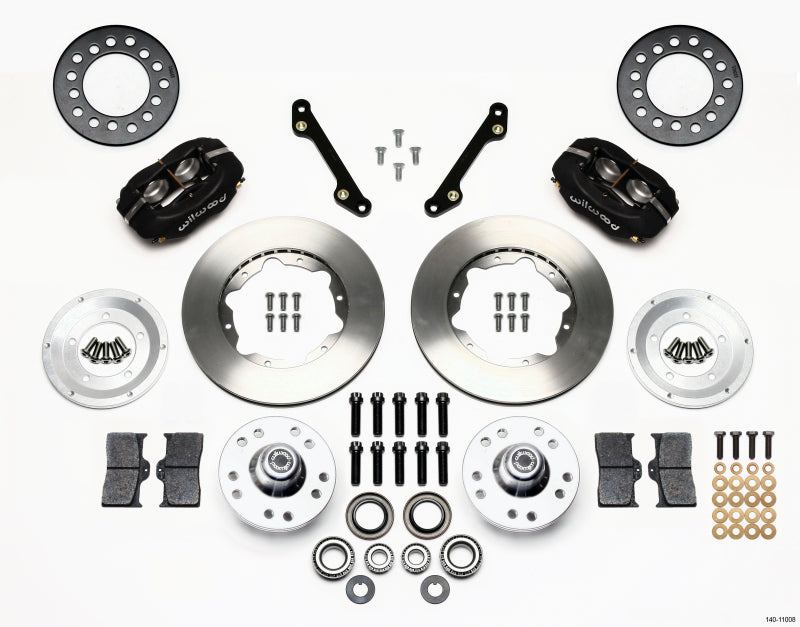

Kit Components & Specifications
| Calipers | |
|---|---|
| Type: | Forged Dynalite Internal |
| Finish Color: | Black Powder Coat |
| Piston Count: | 4 |
| Piston Area (In²): | 4.80 |
| Piston Type: | Stainless |
| Mount Type: | Lug |
| Brake Pad Plate: | 7112 |
| Brake Pad Area (In²): | 6.36 |
| Brake Pad Volume (In³): | 2.1 |
| Pad Compound: | BP-10 |
| Rotors | |
|---|---|
| Type: | Ultralite HP 30 |
| Style: | Plain Face |
| Surface Finish: | Plain |
| Material: | Iron |
| Outside Diameter (in): | 11 |
| Width (in): | 0.81 |
| Vane Count: | 30 V |
| Design Type: | ULHP |
| Bedded: | No |
| Dynamically Balanced: | No |
| Hubs | |
|---|---|
| Type: | Hub - Vented Rotor Offset |
| Material: | Aluminum |
| Finish Color: | Bare |
| Mount Style: | Adapter |
| Bolt Circle 1: | 5 x 4.50 |
| Bolt Circle 2: | 5 x 4.75 |
| Bolt Circle 3: | |
| Stud Diameter - BC 1: | 1/2-20 |
| Stud Diameter - BC 2: | 1/2-20 |
| Stud Diameter - BC 3: | |
Vehicle Fitments:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1984 - 1985 | Buick | Electra | Estate Wagon, Limited, Park Avenue |
| 1985 | Buick | Electra | T-Type |
| 1979 - 1983 | Buick | Estate Wagon | Base |
| 1979 - 1981 | Buick | LeSabre | Base, Sport |
| 1985 | Buick | LeSabre | Collector's Edition, Estate Wagon |
| 1982 - 1985 | Buick | LeSabre | Custom |
| 1979 - 1985 | Buick | LeSabre | Limited |
| 1982 | Buick | LeSabre | Limited Edition F/E |
| 1979 | Buick | Skylark | Base, Custom, S |
| 1979 - 1980 | Chevrolet | Camaro | Rally Sport, Base |
| 1981 | Chevrolet | Camaro | Sport |
| 1979 - 1981 | Chevrolet | Camaro | Z28, Berlinetta |
| 1980 - 1990 | Chevrolet | Caprice | Base |
| 1979 - 1990 | Chevrolet | Caprice | Classic |
| 1986 - 1990 | Chevrolet | Caprice | Classic Brougham |
| 1981 - 1982 | Chevrolet | Caprice | Classic Estate |
| 1979 - 1981 | Chevrolet | Caprice | Classic Landau |
| 1987 - 1990 | Chevrolet | Caprice | Classic LS Brougham |
| 1979 - 1980 | Chevrolet | Caprice | Classic Sport |
| 1979 | Chevrolet | Caprice | Landau |
| 1979 - 1985 | Chevrolet | Impala | Base |
| 1981 - 1982 | Chevrolet | Impala | Estate |
| 1979 | Chevrolet | Impala | Landau |
| 1979 - 1980 | Chevrolet | Impala | Sport |
| 1979 | Chevrolet | Nova | Rally, Base, Custom |
| 1979 - 1985 | Oldsmobile | Custom Cruiser | Base |
| 1979 | Oldsmobile | Omega | Brougham LS, Brougham, Base |
| 1979 - 1981 | Pontiac | Bonneville | Brougham, Base, Safari |
| 1979 - 1981 | Pontiac | Catalina | Safari, Base |
| 1979 - 1981 | Pontiac | Firebird | Trans Am, Base, Formula, Esprit |
| 1983 - 1986 | Pontiac | Parisienne | Brougham, Base |
| 1979 | Pontiac | Phoenix | LJ, SJ, Base |
