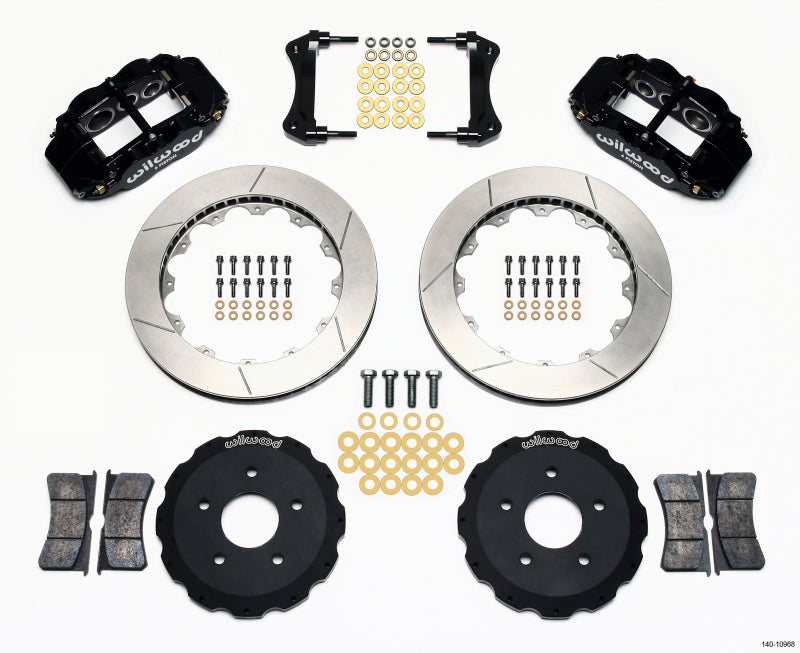

Wilwood FNSL6R Front Hat Kit,13.06",Backdraft Cobra(BMW E36 Based)

Forged Narrow Superlite 6R Big Brake Front Brake Kit (Hat)

The unsurpassed braking capacity of the Forged Narrow Superlite 6R six-piston caliper serves as the base of this group of 13”-14” big rotor kits for these popular late model vehicles. FNSL6R kits are engineered application specific for simplified installation and full compatibility with OE master cylinder output and ABS functions where used. Big brake kits provide increased brake capacity and complimentary style with wheel, tire, and suspension upgrades on show cars and high performance street/track machines. Optional caliper finishes and rotor designs simplify personalizing the style and braking requirements of any application.

Specifications

Mount Type: Radial

Caliper Type: 6 - Black Powder Coat

Rotor Diameter: 13.06

Min Wheel Diameter Req'd*: 17

Calipers

Left Hand - Part No: 120-11779-BK

Right Hand - Part No: 120-11778-BK

Type: Forged Narrow Superlite 6R

Finish Color: Black Powder Coat

Piston Count: 6

Piston Area (In²): 4.04

Piston Type: Stainless

Mount Type: Radial

Brake Pad Plate: 7416

Brake Pad Area (In²): 8.2

Brake Pad Volume (In³): 3.8

Pad Compound: BP-10

Rotors

Left Hand - Part No: 160-8166

Right Hand - Part No: 160-8165

Type: GT 48 Curved Vane

Style: GT Slotted

Surface Finish: Plain

Material: Spec-37 Iron

Outside Diameter (in): 13.06

Width (in): 1.25

Vane Count: 48 CV

Design Type: GT

Bedded: No

Dynamically Balanced: Yes

Rotor Hats

Hat - Part No: 170-10970

Type: Big Brake Hat - Short Offset

Material: Aluminum

Finish Color: Black E-Coat

Hat Offset Dimension (in): 0.71

Bolt Circle 1: 5 X 4.72

Stud Diameter - BC 1: 0.48

Stud Diameter - BC 2: 0

Stud Diameter - BC 3: 0
